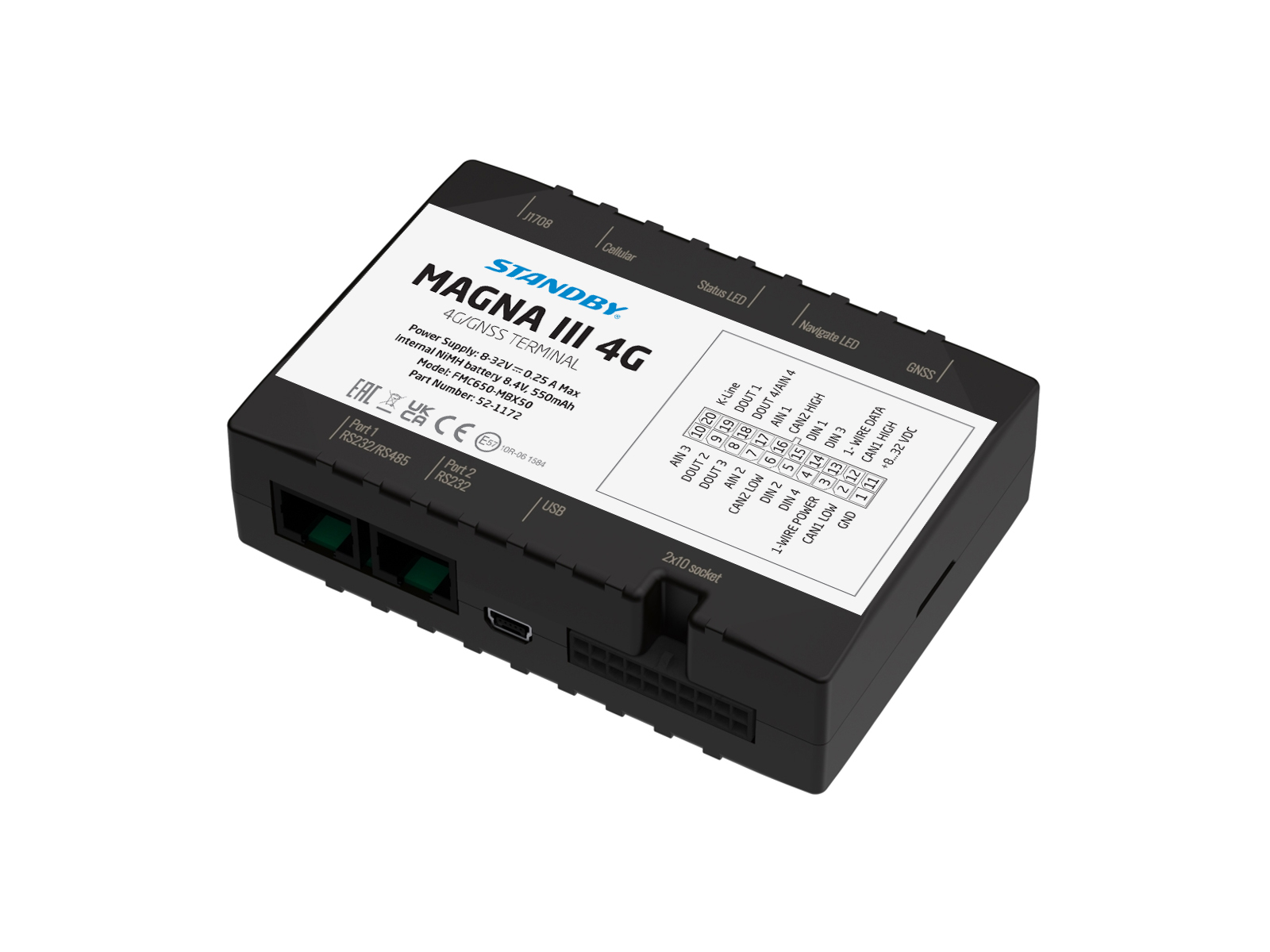

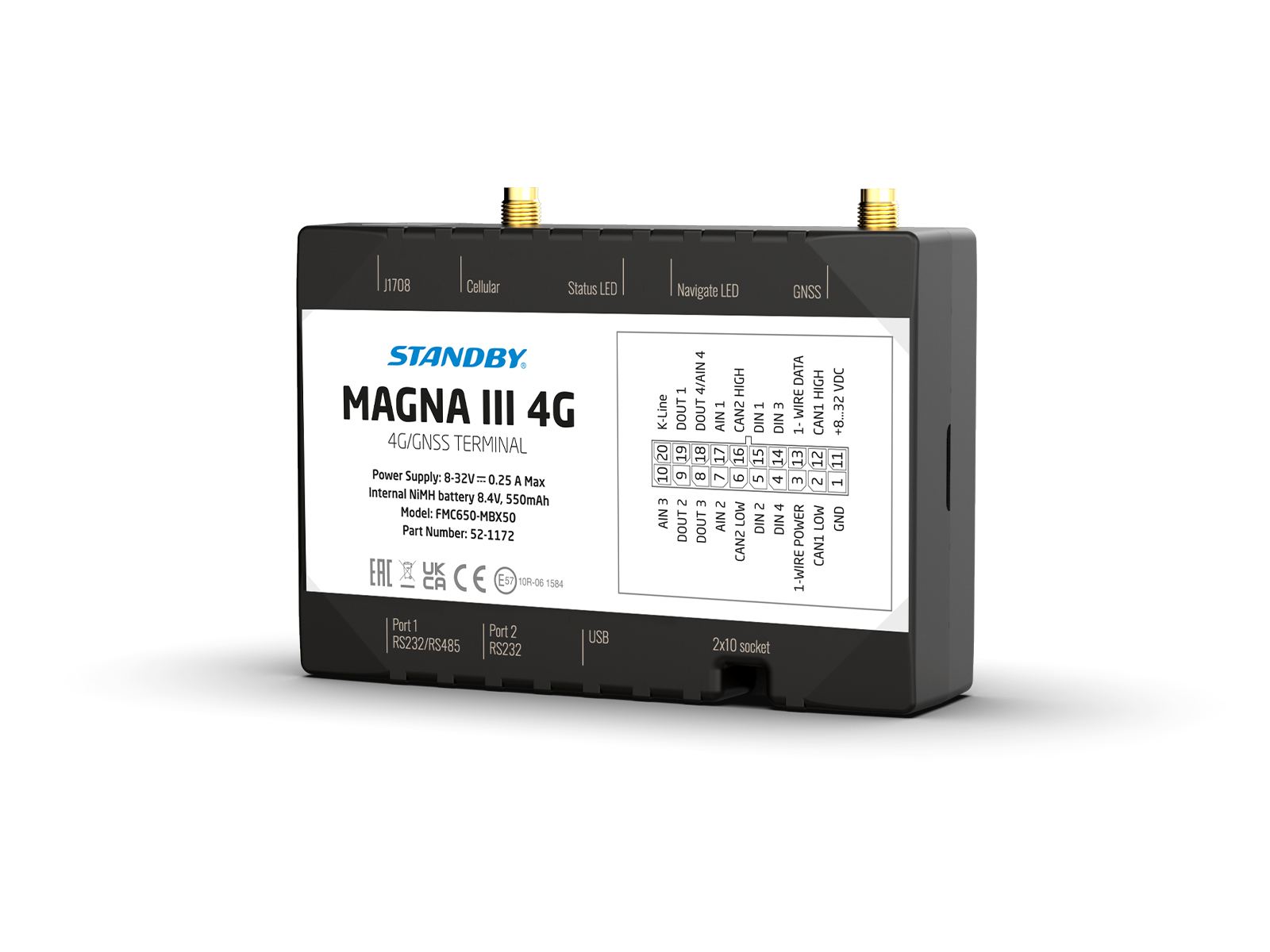

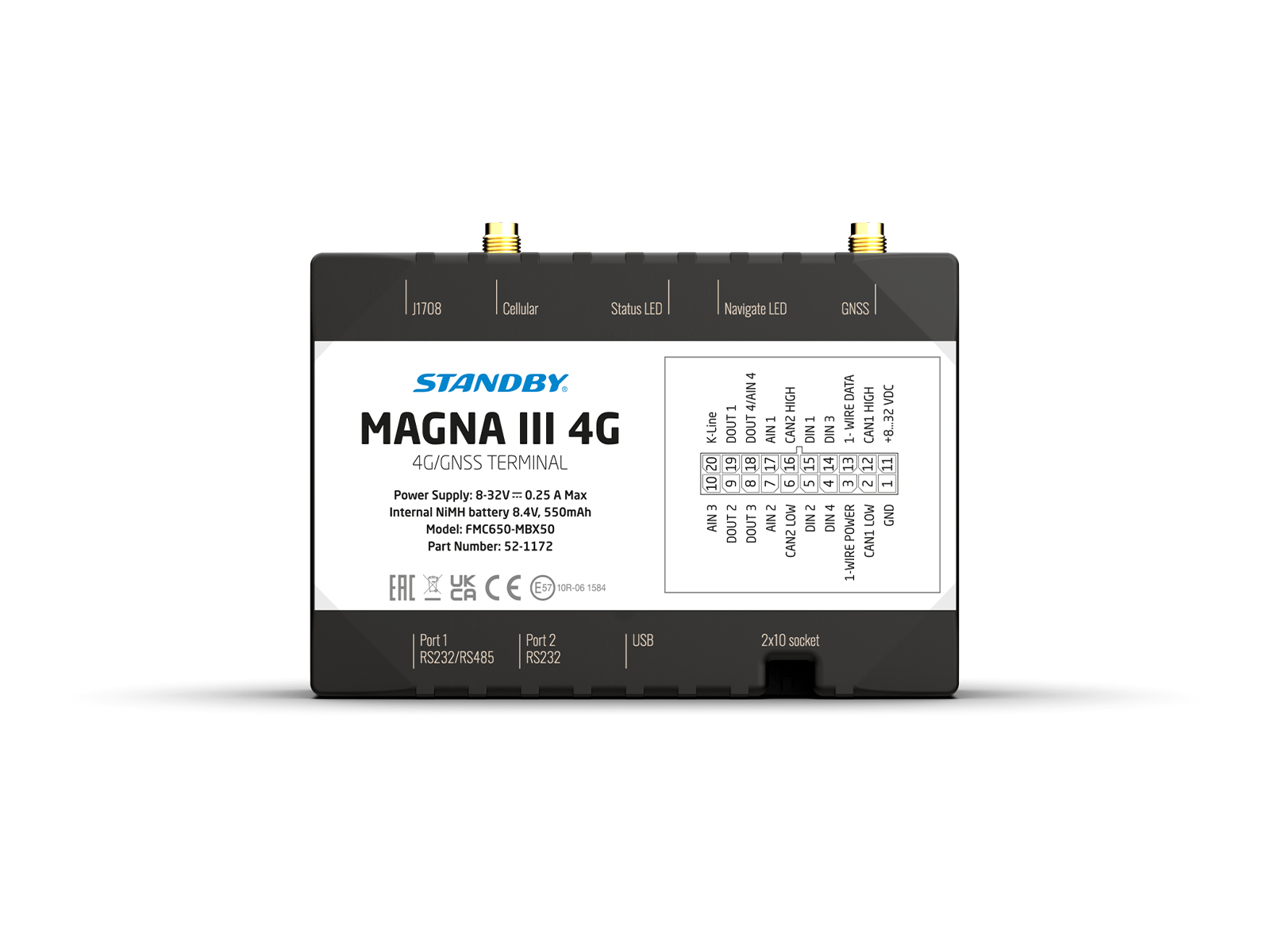

FleetMotus Magna III 4G

The FleetMotus Magna III 4G is the ideal hardware companion to our web-based telematics platform, FleetMotus. Designed for advanced applications, it meets the data collection needs of fleet managers across small, medium, and large enterprises, including Emergency Services fleet departments.

This device offers huge flexibility and control in fleet telematics. Its intuitive track point panel and fully customisable dashboards provide clear, actionable insights. Alerts and reports can be tailored to deliver the precise information you need, automatically scheduled to arrive in your preferred format, at the right time. With advanced role-based access controls, you can ensure every team member sees the data most relevant to their role, promoting efficiency and security across your organisation.

Reliable global coverage and separate GNSS module Reliable 4G connection with fallback to 2G network ensures wide-ranging coverage of your fleet management needs. This model uses a separate module to gather GNSS data and has dual-channel, L1 + L5 support.
Remote download of tachograph files and live data Tachograph live data reading via K-Line, Tacho CAN or FMS connections for everyday driver management and fleet efficiency.
CAN data reading from heavy vehicles and special machinery Read J1939 data that includes standard CAN FMS from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses. Possibility to connect to CAN line with multiple nodes.
Connecting external devices 2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, RFID readers and more.

Length: 104.1mm
Width: 76.8mm
Height: 29.2mm
Weight: 197g
Operating Temperature: -40 °C to +85 °C (without battery)
Storage / Transport Temperature: -40 °C to +85 °C (without battery)
Protection Class: IP41
Approvals: Regulatory CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC
