The Autoeye Xpert Maxi Dashcam is an AI dashcam that helps drivers to reduce traffic accidents and facilitates fleets to improve management efficiency. Based on AI technology, it can actively detect risky driving events and unsafe driving behaviors, supporting sending local real-time reminders to the driver to avoid risks and uploading events to the fleet management platform for driver training. It transmits real-time and accurate vehicle position information and operation data to the fleet management platform. It provides high-quality remote intercom and video live view playback to make the fleet management easier and more efficient. Provides 2 channel recording as standard, can be increased up to 4 channels via an expansion cable (AEX-ST-ACC-MAXI).
More product information
About the product
Benefits
- Ultra-wide 140° DFOV road facing lens, supporting up to 1920P UHD video recording
- Ultra-wide 170° DFOV driver facing lens, supporting up to 1080P HD video recording
- Support up to 4-channel video recording
- H.264/H.265 encoding
- 2x256GB dual-Micro SD card storage, supporting the simultaneous storage of mainstreams and sub streams
- Built-in Wi-Fi, 4G communication module, and inertial navigation positioning module
- AES256 encryption for video/audio data, encryption protocol TLS1.3 for data transmission
- 4-channel IO input, 1-channel CAN and 1-channel RS232
- Compact design, not affecting the driver’s sight regardless of vehicle size
- OBD power supply, easy installation
- Built-in ADAS function, supporting lane departure warning (LDW), forward collision warning (FCW), and headway monitoring warning (HMW)
- Built-in DSC function, supporting the detection of unsafe driving behaviors
- Support echo & noise canceling algorithm to improve the quality of two-way audio communication
- Sleep mode, remote wakeup
- Built-in 6-axis gravity sensor, supporting rapid acceleration, rapid deceleration, harsh cornering, and accident detection

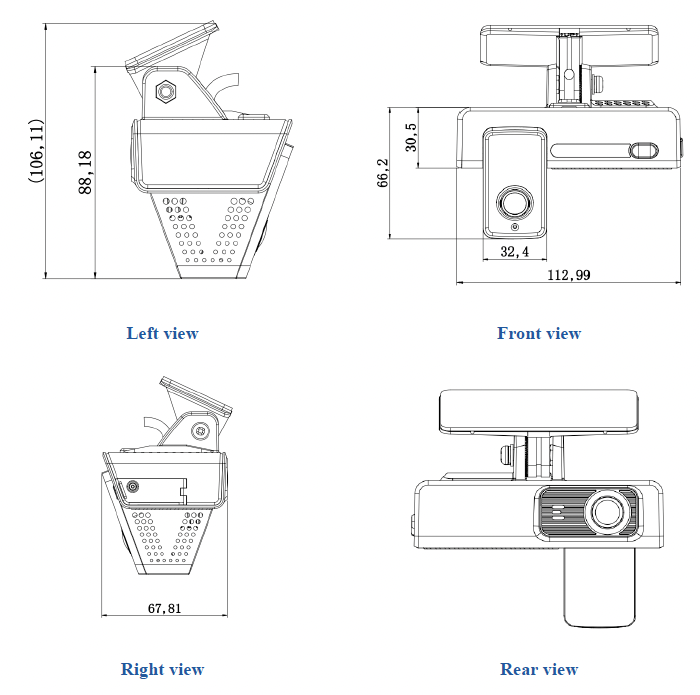

Drawings
Downloads
Technical Data
- Nominal Voltage
- 12/24 VDC
- Current consumption
- In standby mode:13.5V@5.67mA, 27V@3.39mA
In sleep mode (4G and MCU powered):13.5V@62~124mA, 27V@32~61mA - Power consumption
- Typical power consumption (with dual SD cards installed and SIM card for dialing): about 7.56W
Full-load power consumption (with dual SD cards installed, SIM card for dialing, Wi-Fi turned on, IPC and AHD connected, and infrared lamp turned on): about 12.66W - Acoustic Output
- Built-in 3W loudspeaker
- Dimensions
- 113.0 mm×67.8 mm×88.2 mm (excluding bracket); Deviation: ±2mm
- Weight
- 745g
- Operating Temperature
- -40°C to +70°C
- Storage / Transport Temperature
- -40°C - +85°C
