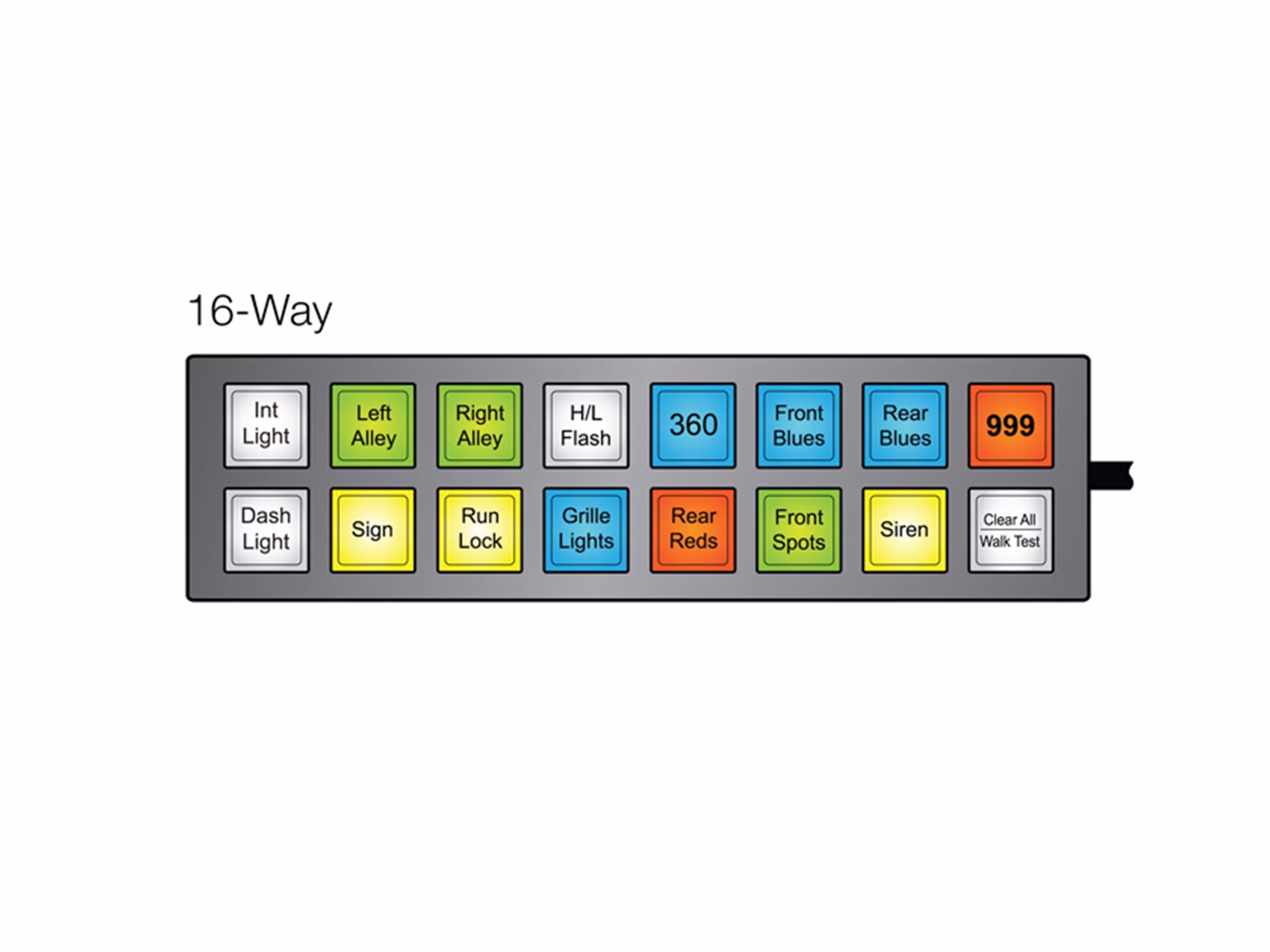

MCS-F16 MaxiPlus Switch Unit – DIN Mount/Flush Fit

Each button can be independently configured in terms of operation, legend designation and even back light colour, therefore it is the ideal interface for controlling a variety of vehicle based hazard warning systems including the MCS range of control systems.

• 16 small buttons, 14 small button and 1 double button
• Fully programmable at source and/or by customer
• Each switch can have a multi-function ‘HOT’ key action depending on required function
• Small buttons can also have dual function increasing versatility
• Designed to be set into the vehicle dashboard via a radio DIN slot or mounted directly onto the dash or via a mounting bracket (not supplied) by utilising the two M4 threaded inserts on the rear of the unit
• Requires a separate microphone for use with PA equipment
• 3 stage back illumination – low brightness when OFF, high brightness when ON and both levels dimmed at night
• Button colours are defined by the LED back light, therefore they have no colour when the switch unit is ‘Off’
• All configurations compatible with MCS-32, MCS-16 and MCS-8
• Adjacent buttons can be combined for dual functions and extra visual impact
• 3 year manufacturers warranty
