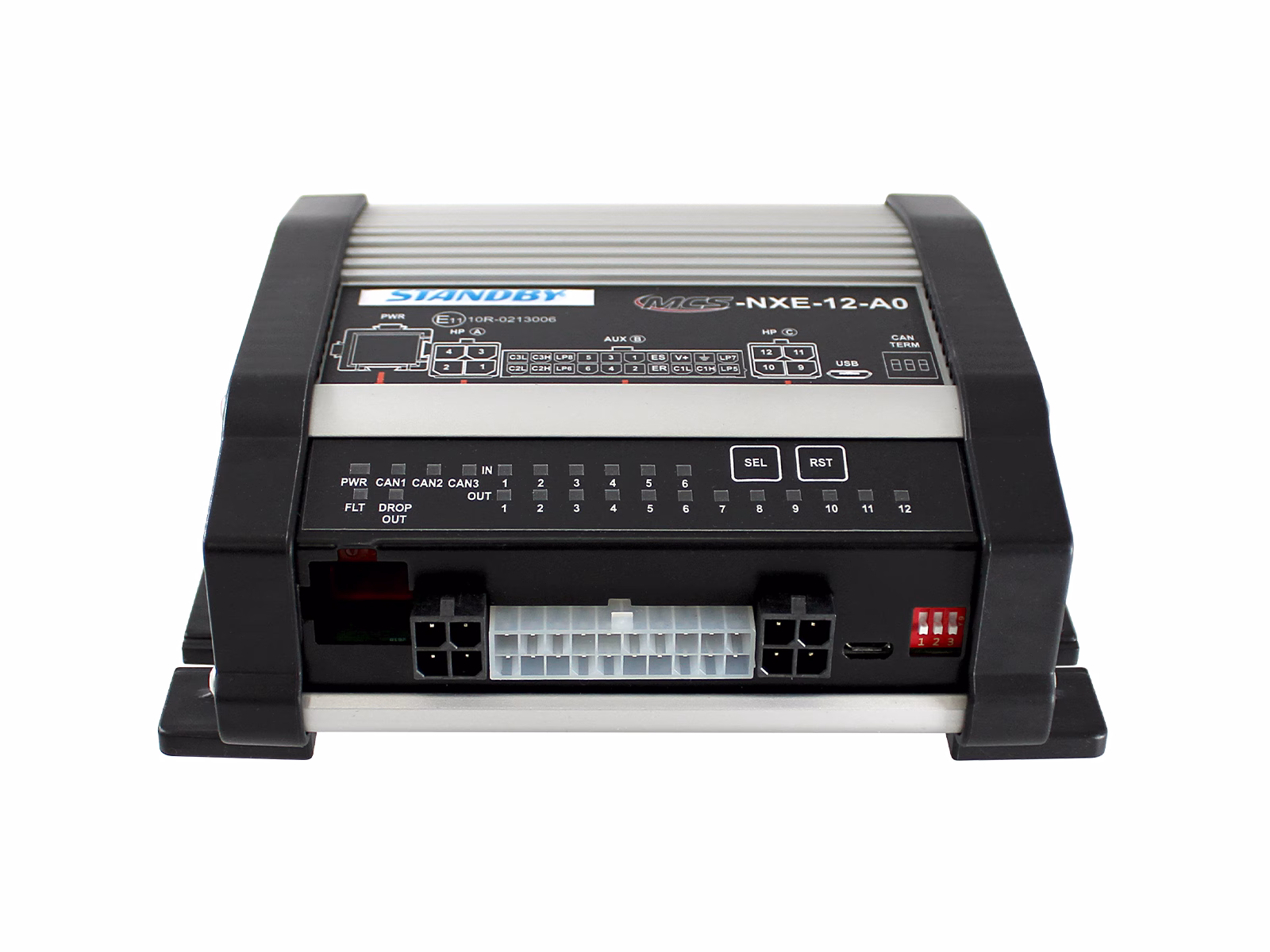

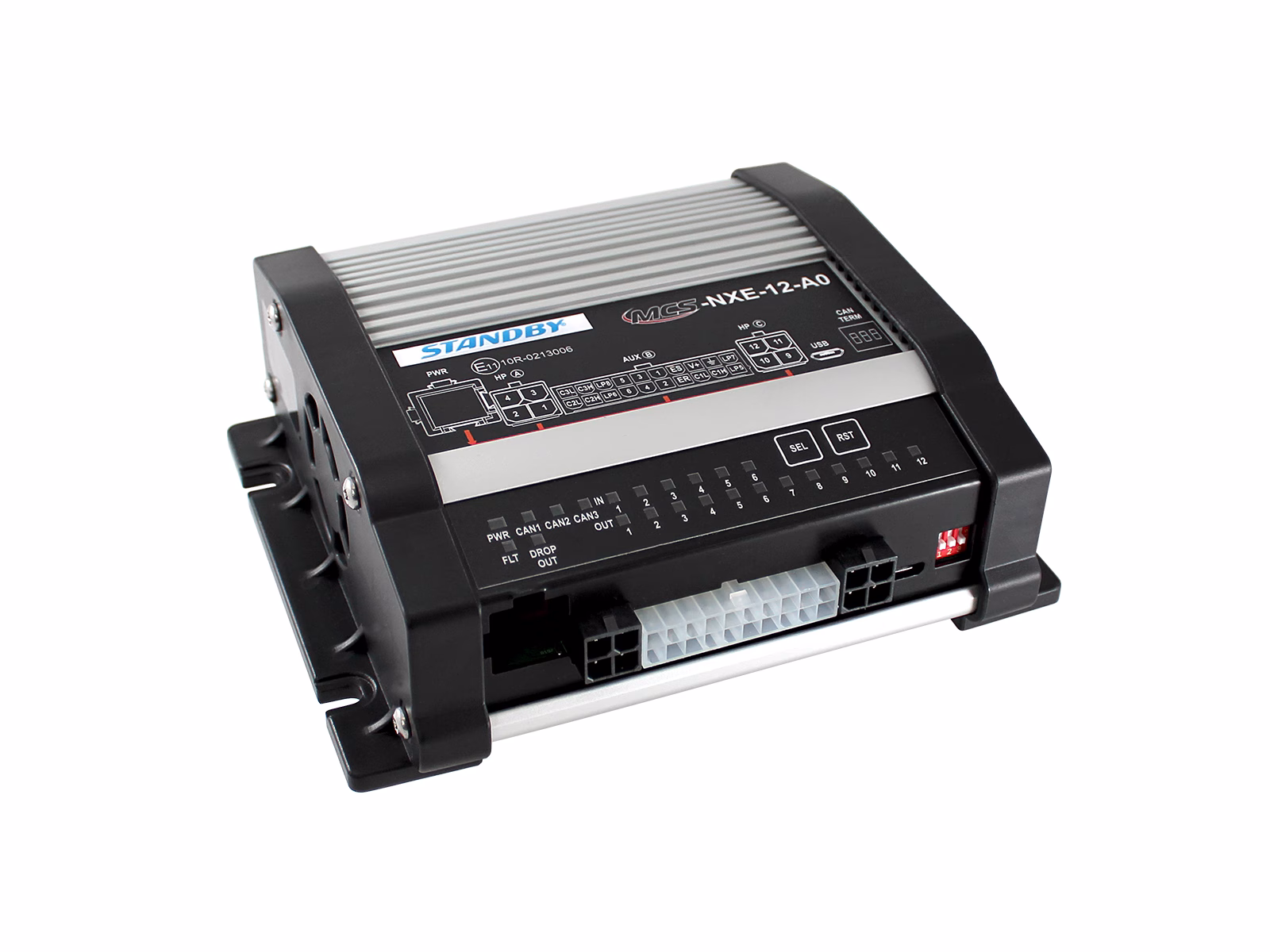

MCS-NXE-12 Next Generation Control Unit

The MCS-NXE-12 is engineered for commercial fleet vehicles that require dependable control of auxiliary systems without the added complexity of emergency-service-specific features. By removing unnecessary functionality, the NXE-12 delivers a streamlined solution that is easier to install, configure, and maintain.

Designed for applications such as rooftop and secondary lighting, power management, and auxiliary equipment control, the NXE-12 supports efficient vehicle builds where space, cost, and simplicity are critical. It is fully compatible with existing MCS handsets and switch units, allowing familiar operation and straightforward integration into current installations.

The unit is available with or without integrated audio intercom capability and supports both 12V and 24V vehicle systems, making it suitable for a wide range of commercial applications.

This NXE model provides reliable power distribution and control with 8 × 20A high-power positive outputs and 4 × 2.4A low-power negative outputs, all within a space-saving footprint.

RJ45–RJ45 6m cable not included as standard.
This avoids unnecessary cost and environmental impact where customers may already have suitable cables. Available to purchase separately if required.

Reduced loom length
Easier to install
Improved connectivity
All new configuration software
Easier diagnostic and fault finding
Reduced need for additional units
Low power output current limit increased to 2.4A
Greater scope during installation for product control allowing for increased load shedding capability
Flash pattern selectable for group flashing
Multifunction outputs priority based
Fully compatible with existing MCS handsets/switch units
Familiarity for user interface
3 x CAN reading ports defined by user (not preset)
CAN-2.0 (MCS) upgraded to CAN-FD (MCS-NX), allowing for larger data length along with faster BIT rate
Vehicle CAN integration widened to pick up second CAN line if required
Built-in low frequency capability
Full volume control for workshop/city mode
Dual voltage – 12v and 24v operation
Reduced weight

Operating Voltage: 9 - 32 VDC
Nominal Voltage: 12/24 VDC
Current Consumption: NXE-12-A0
Running 13.8V - 72mA
Sleeping 13.8V - 6mA
External Shutdown 13.8V - 4mA

NXE-12-A1
Running 13.8V - 138mA
Sleeping 13.8V - 14mA
External Shutdown 13.8V - 5mA
Interface: CAN-bus
Inputs: 6 x Universal
Outputs: 8 x 20A High Power - Positive
4 x 2.4A Low Power - Negative

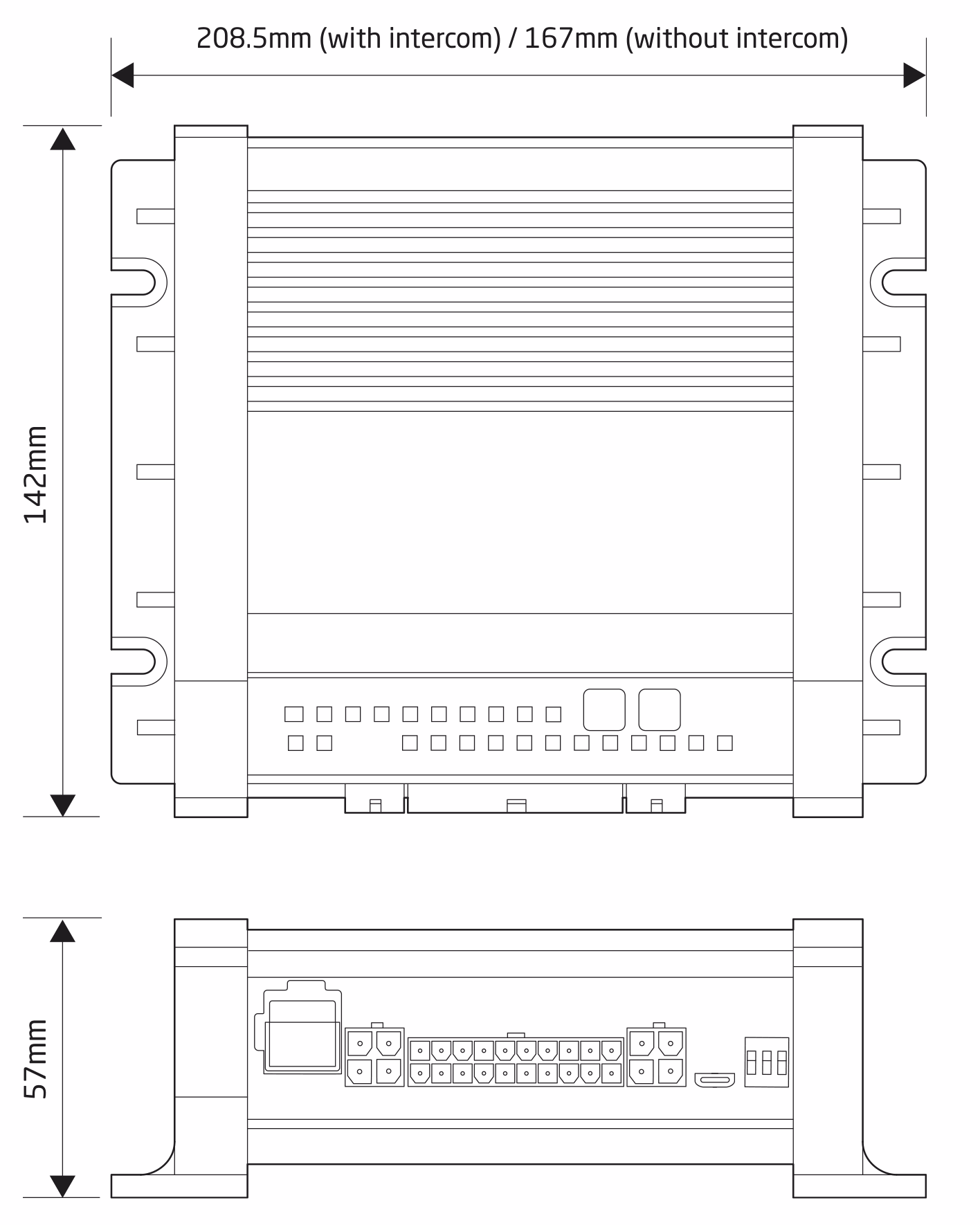

Width: 142mm
Height: 57mm
Weight: 0.8kg
Operating Temperature: Standby - -20°C–70°C
Operating - -20°C–50°C
Approvals: ECE R10, Home Office Spec 5, VCA approved manufacturing facility

MCS-NXE platform overview

The MCS-NXE (Enterprise) range is intended for commercial fleet vehicles fitted with a lower level of non-OEM electrical equipment. Features commonly associated with emergency service vehicles – such as integrated siren amplifiers and higher-complexity switching – are intentionally excluded to reduce cost, weight, and system complexity.

Low-power outputs on NXE models are negative-switching only, reflecting typical commercial vehicle requirements, while retaining the same proven core hardware architecture as the MCS-NX platform.

Human Machine Interface

The MCS-NXE-12 is fully compatible with the existing range of MCS handsets and switch units, providing intuitive control of lighting, auxiliary functions, and power management with minimal training required.

Audio intercom (optional)

An optional Audio Intercom is available on NXE models (denoted by -A1), providing:

Two differential microphone inputs
Two 5W speaker outputs
Two PTT switch inputs
Independent volume control per channel

The system supports two-way communication and audio announcements where required.

Software configuration

The NXE-12 uses the latest MCS-NX-CONFIG software, developed to simplify system configuration and diagnostics. Key capabilities include:

Intuitive, logical user interface
Drag-and-drop functional modules
Pre-built and customisable modules
User-defined execution order and logic flow
Clear settings panels, labels, and icons

MCS-NXE-12 Next Generation Control Unit

More product information

About the product

Benefits

Drawings

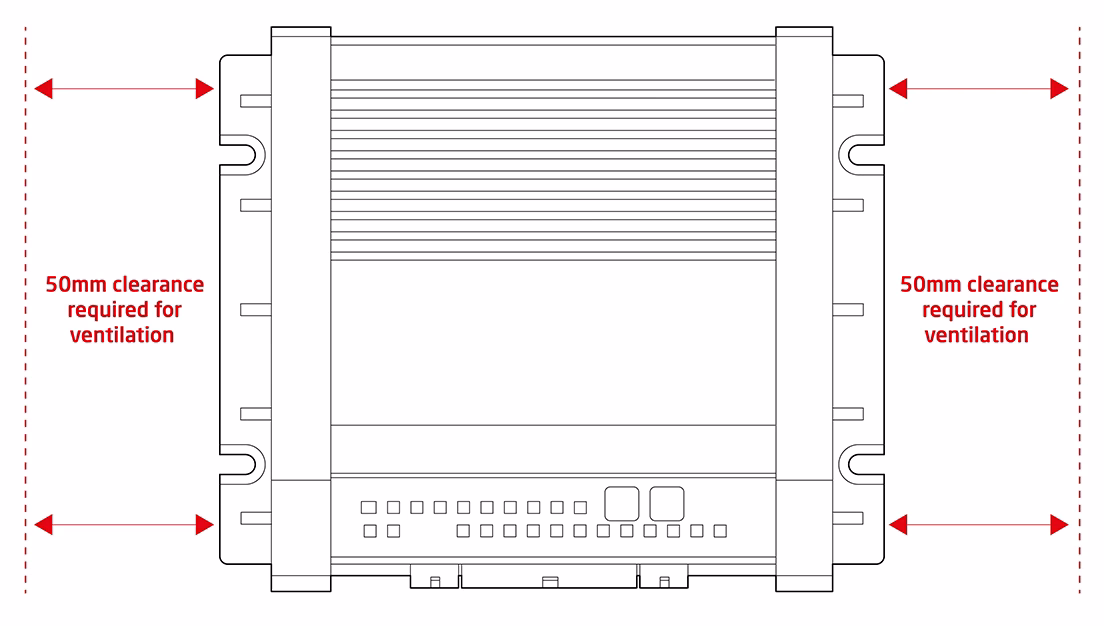

Clearance
