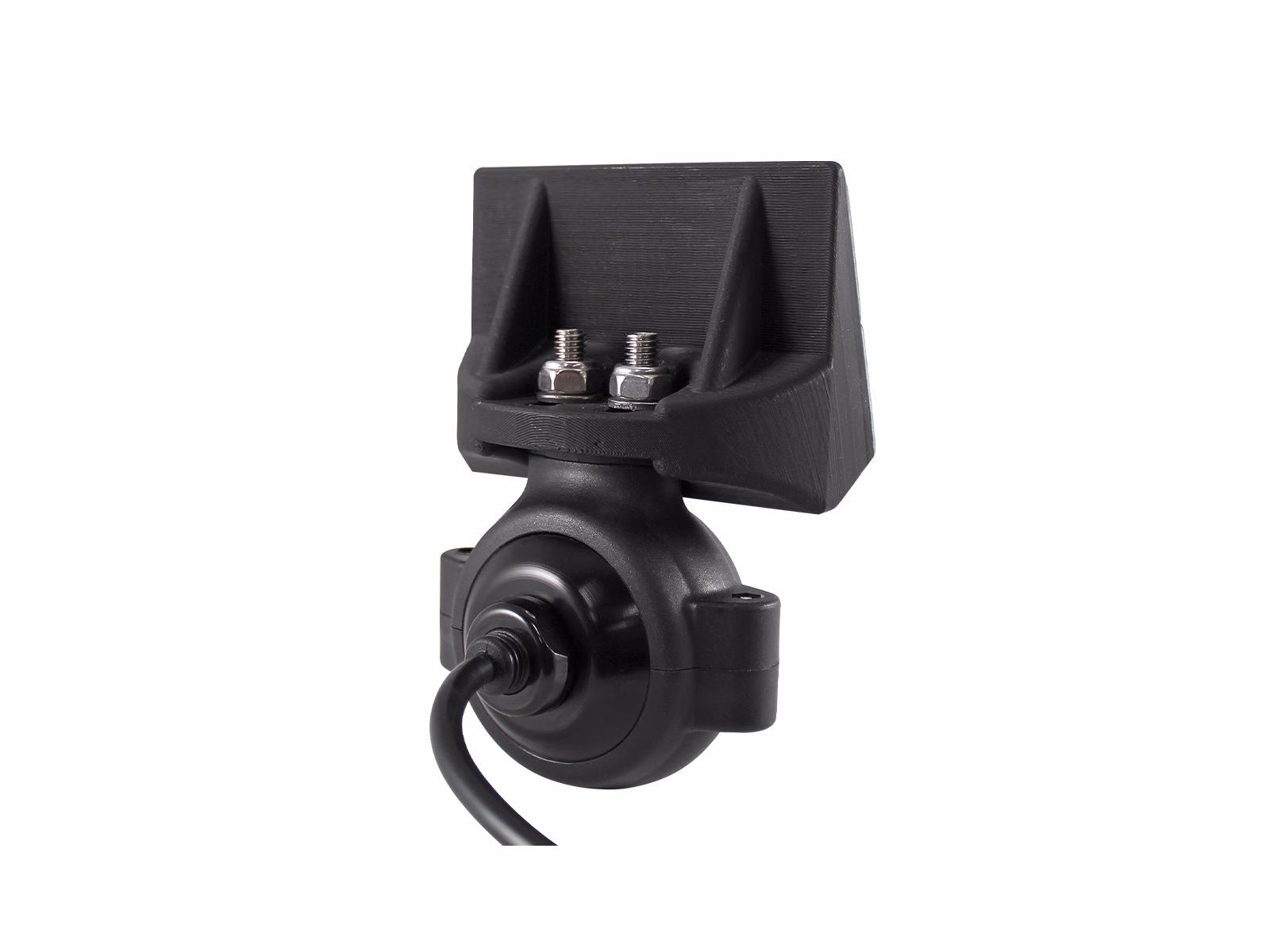

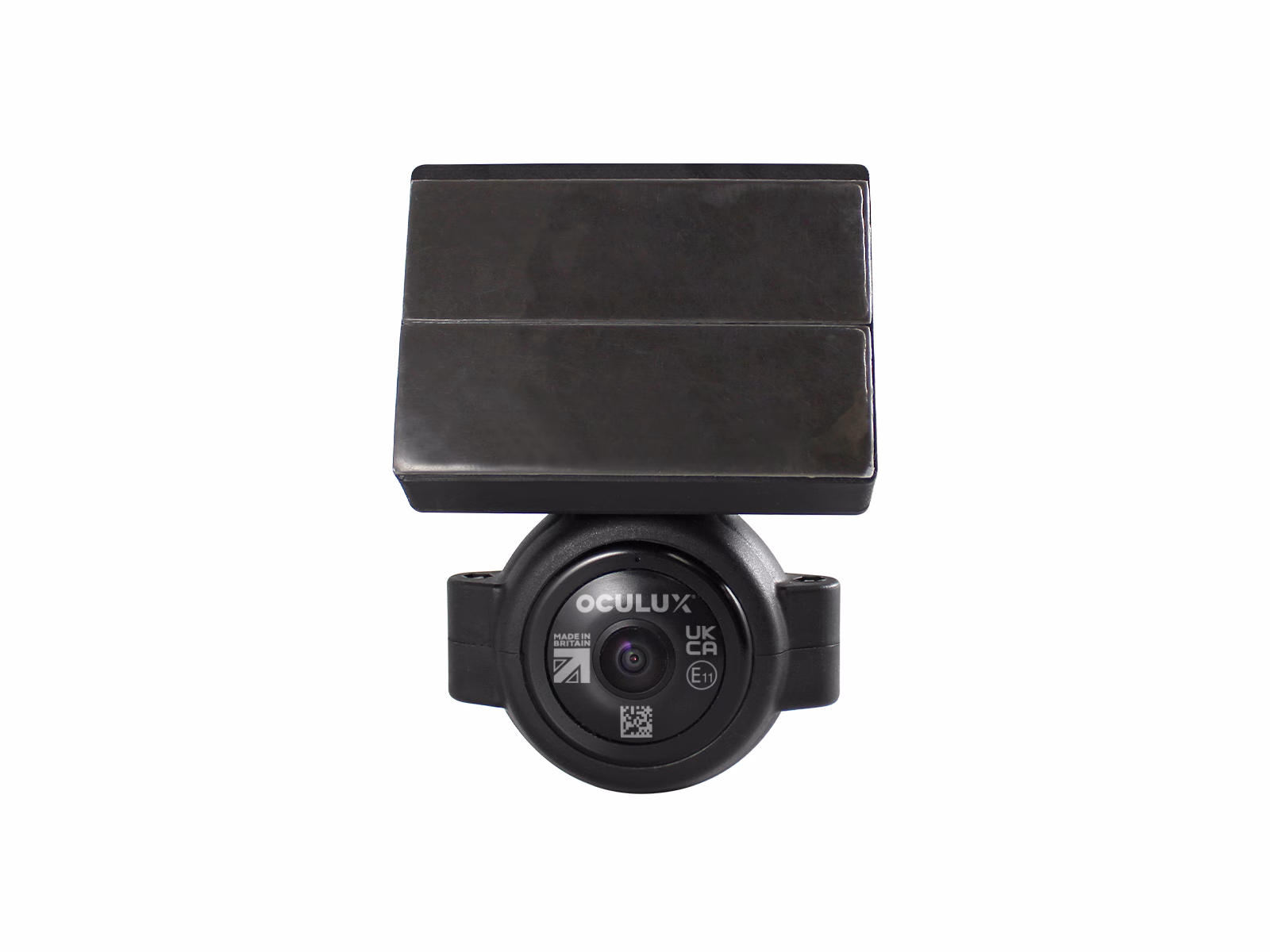

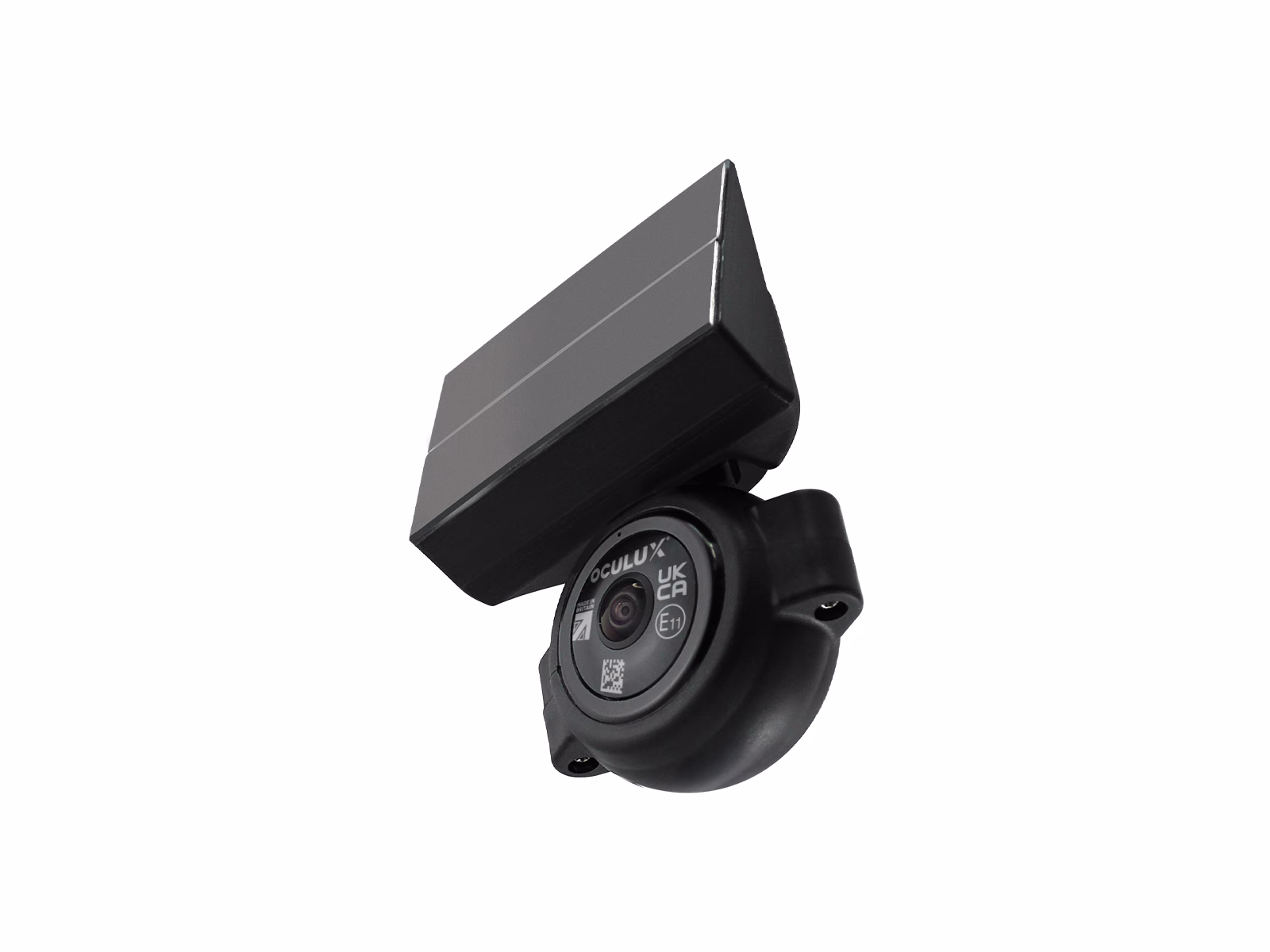

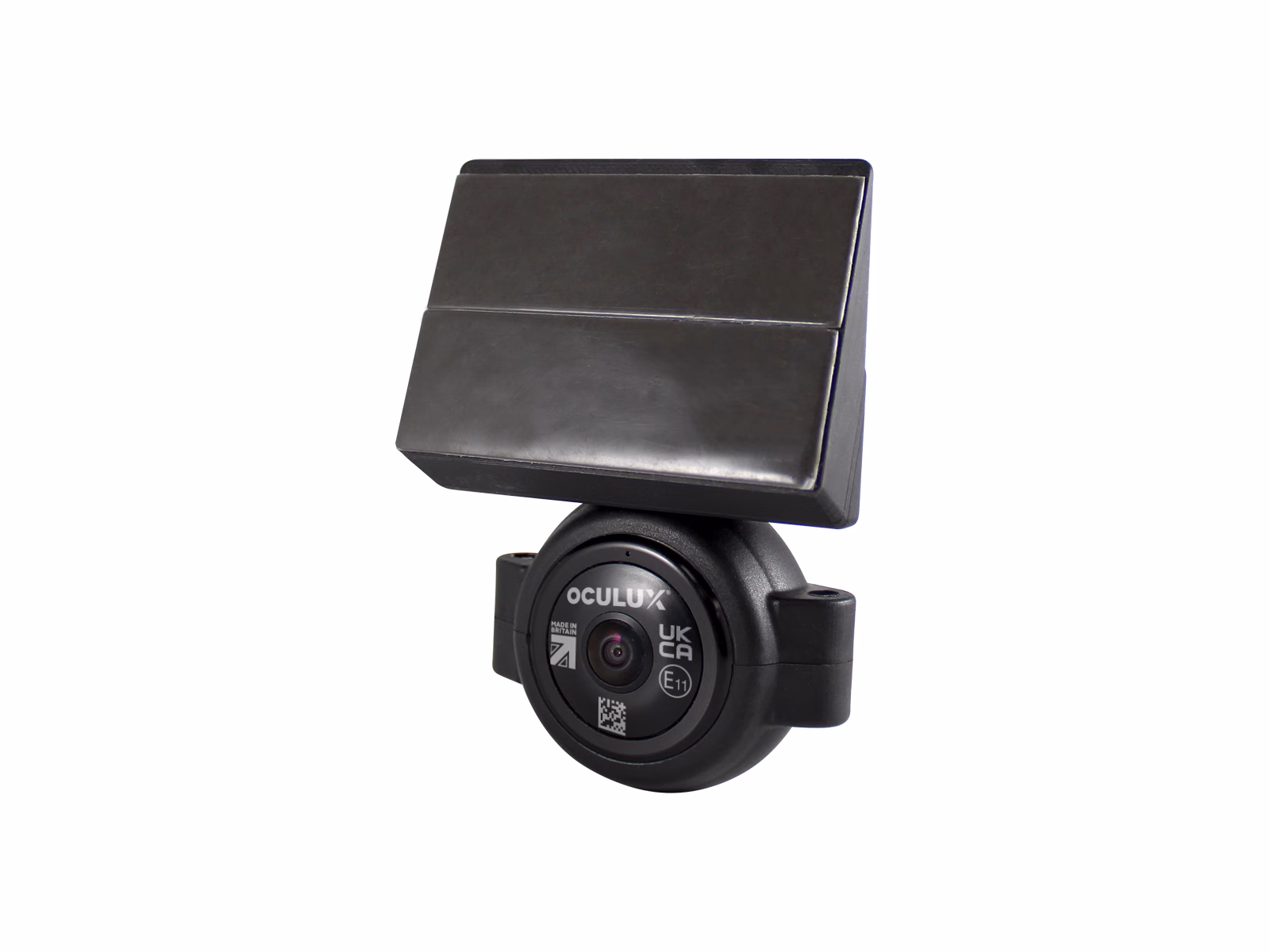

Oculux® Adjustable Glass Camera Mount Kit

More product information

About the product

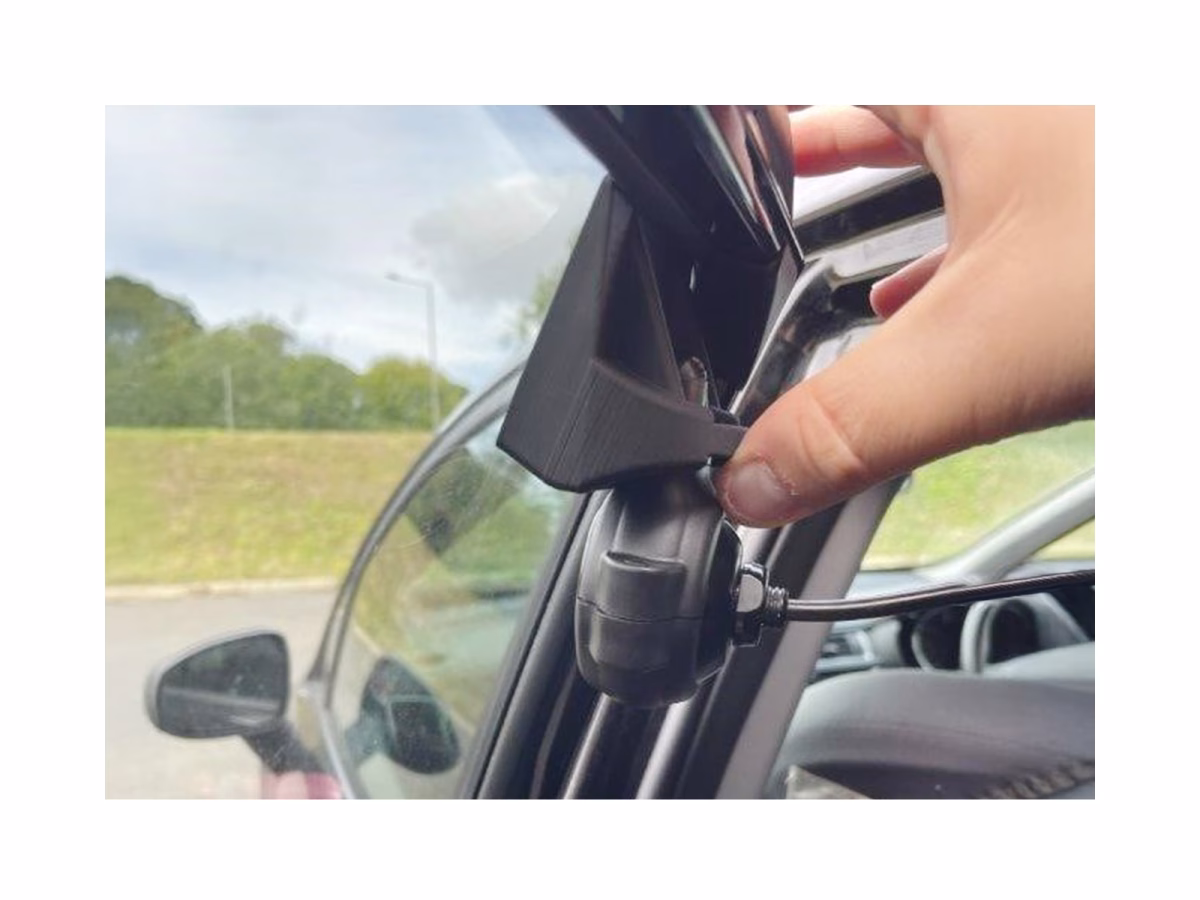

The Adjustable Glass Camera Mount system allows the Oculux® camera to be discreetly mounted to the inside of the vehicle windscreen. It has been designed for covert surveillance vehicles and can be used in many other applications.

The window attachment has the ability to adjust the angle of the camera for optimum field of view.

This unit comes equipped with a high-performance Oculux® 1080p wide-angle AHD CCTV camera.

Constructed from UV-stable moulded plastic with strong self-adhesive pads and corrosion-resistant stainless steel components, this bracket ensures durability and longevity in demanding environments.

Oculux® Camera

The Oculux® camera is supplied with a high performance nylon polyamide (Eplamid) shell that offers exceptional strength and resilience in all conditions.
The Oculux® CCTV camera is designed specifically for the challenges of commercial, heavy goods vehicle and Emergency Service vehicle use.

Benefits

Drawings

Technical Data

Length: 110.11mm
Width: 77.50mm
Height: 34.8mm
Operating Temperature: -40°C to +70°C
Storage / Transport Temperature: -40ºC to +90ºC
Approvals: ECE-R10-05: E11*10r05 / 01*10998*04
FCC: G6413TC1

Camera Specification
Oculux® Camera	Model: 301258
Imaging Technology	UltraLux+ - Advanced low light CPU technology
Lens Technology	HyperLens - anti-abrasion and anti-reflective technology
Horizontal Field of View	Wide (159º)
Resolution	HD2: 1920 x 1080
Transmission	AHD
Format	PAL
Enclosure	Shell: High performance nylon polyamide (Eplamid) Illumination Cover: Thin film optical coated automotive grade polycarbonate
Connector	4-pin Aero style
Cable	PVC 0.5cm shielded
Ingress Protection	IP68 / IP69K
Current Consumption	HD2 PAL @ 12Vdc: 80mA to 140mA
Warranty	2 years standard, 5 years standard corrosion and mount failure
