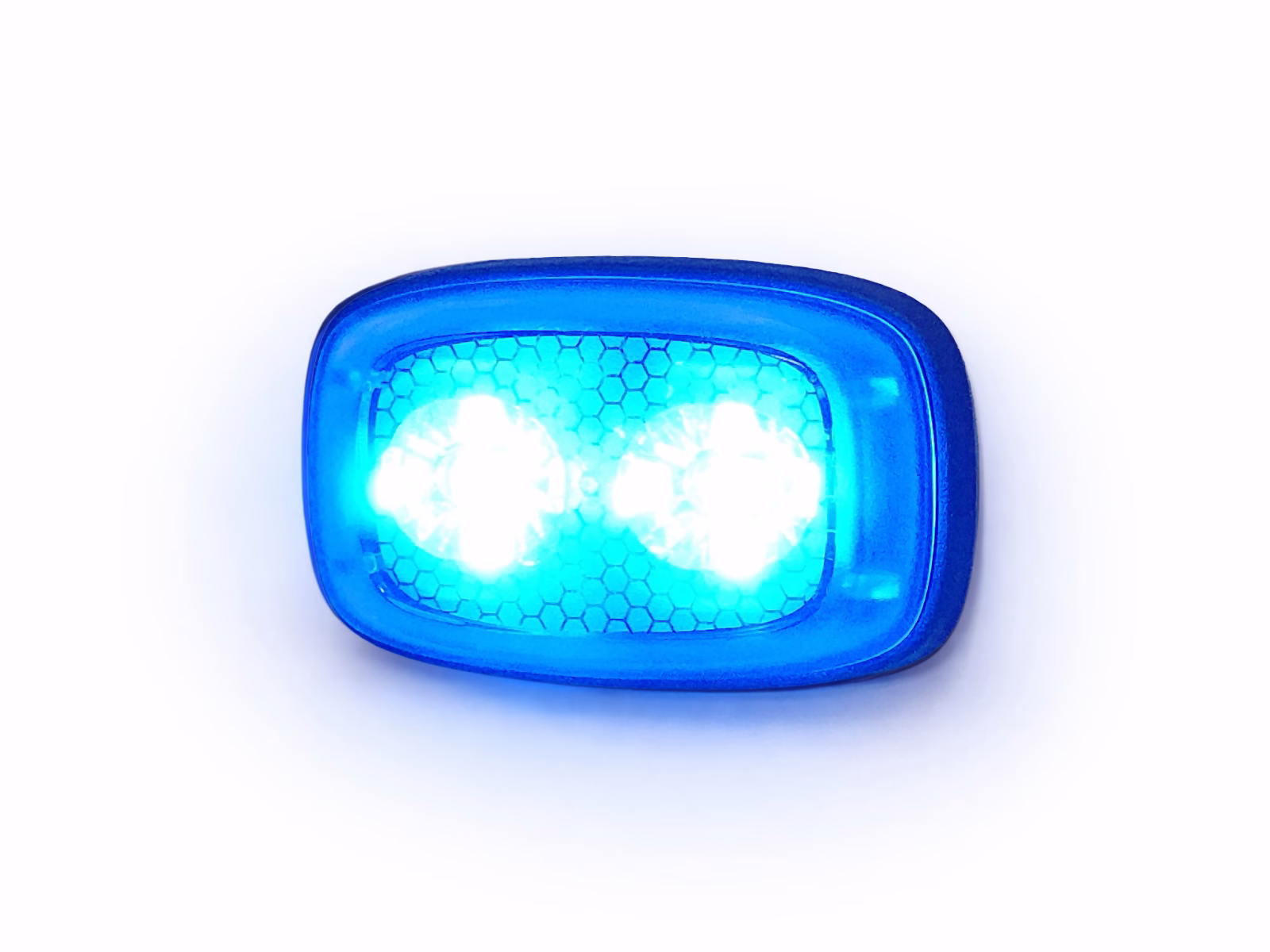

Reactor 4-LED Warning Light
The Reactor 4-LED Warning Light is an extremely compact and lightweight single colour warning light, for use in tight or limited spaces.
More product information
About the product
Benefits
- Small footprint and compact design suitable for installation in tight or limited space.
- Extremely lightweight – Only 23 grams.
- ECE R65 Class 1 homologated light output.
- Screwless design – 3M adhesive tape for quick installation.
- Multi-unit synchronization in simultaneous or alternating flash.
- Weatherproof to IPX7, IPX9K and vibration resistant design for external use.
Drawings
Downloads
Technical Data
- Nominal Voltage
- 12/24 VDC
- Current Consumption
- Avg. Current: 0.375A @12VDC / 0.188A@24VDC
Max. Current: 0.75A @12VDC / 0.375A@24VDC - Power Consumption
- Avg. Power: 4.5W
Max. Power: 9W - LED Colour
- Amber, Blue, Red
- Lens Colour
- Clear
- Number of LEDs / LED Modules
- 4
- Flash Patterns
- 18 Built-In
- Synchronisation
- Yes Up to 20 units
- Cable
- 0.265m
- Mounting
- 3M adhesive tape
- Length
- 52.8mm
- Width
- 32.2mm
- Height
- 10mm
- Operating Temperature
- -40°C to +75°C
- Storage / Transport Temperature
- -40°C to +65°C
- Protection Class
- IPX7, IPX9K
- Approvals
- ECE R65 class 1 SAE J595 Class 1, CA13, R10
| Flash Patterns | |||
|---|---|---|---|
| 1 | Double (2Hz) | 11 | Quint (SAE) |
| 2 | Single (2Hz) | 12 | Mega |
| 3 | Triple (2Hz) | 13 | Giga |
| 4 | Quad (2Hz) | 14 | Ultra (SAE) |
| 5 | Random | 15 | Single-Quad |
| 6 | Steady EF (Requires external flasher) | 16 | Single H/L |
| 7 | Single (SAE/CA13) | 17 | Single-Triple-Quint |
| 8 | Double (SAE) | 18 | Steady Scene |
| 9 | Triple (SAE) | ||
| 10 | Quad (SAE) |
