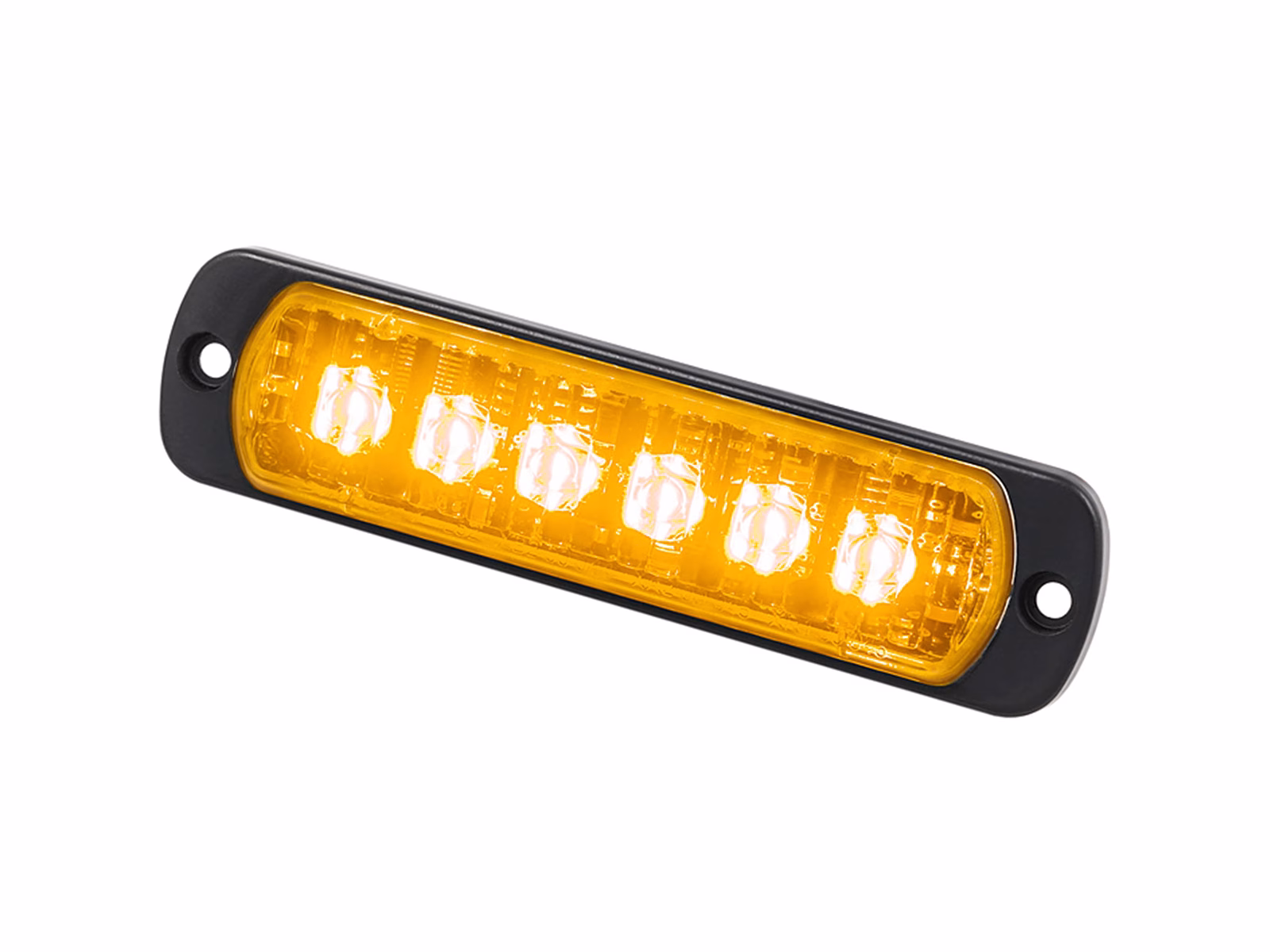

L52 LED Lamp Single Colour

Due to its size it has many versatile mounting options, the L52 LED Lamp Single Colour can be used in many places around the vehicle.

Sleek, stylish and quick to install, the L52 is designed with the latest LED and driver technology, it remains cool in operation after many hours of use. The current draw is almost negligible!

Single colour lamps have 6 LEDs per unit and are available as horizontal mount in Blue, Red and White with Amber available to order as well as a vertical version in Blue only.

Also available in Dual Colour with Clear Lens or Single Colour with Smoked Lens.

Supplied as a single light head with built-in driver
6 high power, super bright LEDs per light head
Polycarbonate lens
Low power consumption
Cable length – 2m
Weather and vibration resistant design for internal and external use
Aluminium base for efficient heat dissipation
Available in blue, red and white single colour horizontal and blue single colour vertical. Amber horizontal and vertical versions available to order.
Also available in independently switchable Dual Colour versions.
4 built-in flash patterns
Multiple units can be linked to flash simultaneously or alternately
Operating temperature -40ºC to +85ºC
12/24v operation
ECE R65 Class 1 and 2, ECE R10 (e) approved
– Blue single colour ECE R65 Class 2
– Amber single colour ECE R65 Class 2
– Red single colour ECE R65 Class 1
All modules are ECE R10 compliant
3 year warranty

Nominal Voltage: 12/24 VDC
Current Consumption: 1.0A at 12V
0.5A at 24V
LED Colour: Amber, Blue, Red, White
Lens Colour: Clear
Number of LEDs / LED Modules: 6
Flash Patterns: 4 Built In
Synchronisation: Yes 12V: up to 12 modules
24V: up to 8 modules
Cable: 2m
Housing Material: Polycarbonate, Aluminium
Length: 113mm
Width: 28mm
Height: 9mm
Operating Temperature: -40°C to +85°C
Approvals: ECE R65 class 1, ECE R65 class 2 Blue single colour ECE R65 Class 2
Amber single colour ECE R65 Class 2
Red single colour ECE R65 Class 1

Flash Patterns
1	DOUBLE - Built-in	3	STEADY BURN 1 - External
2	TRIPLE - Built-in	4	STEADY BURN 2 - External
