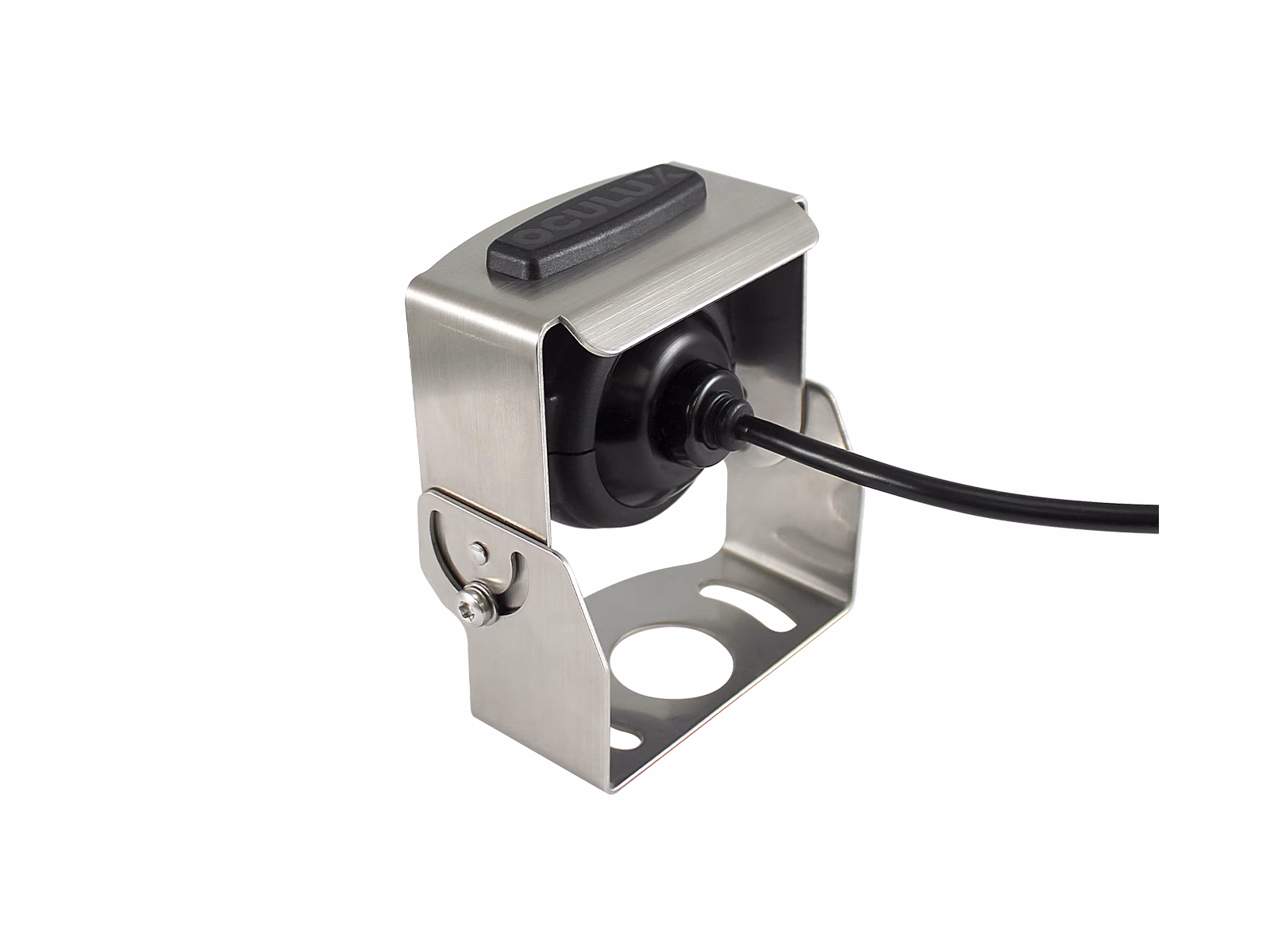

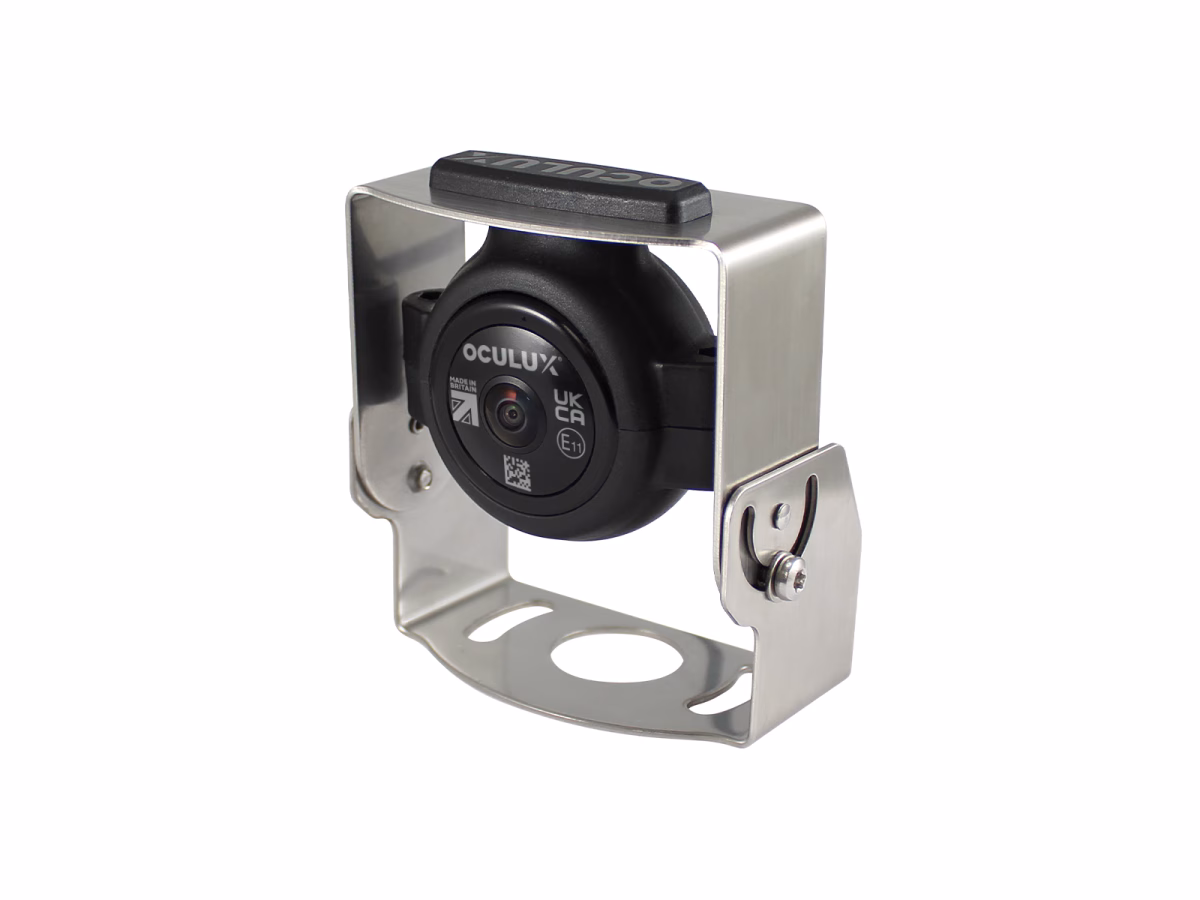

Oculux® Medium Duty Pivot Camera Mount Kit

The Medium Duty Pivot Camera Mount is designed for use in locations where the camera may need protection from light bumps and scrapes. Manufactured from 1.5mm corrosion resistant stainless steel, this bracket can be mounted in a variety of orientations to suit the location.

The pivot mechanism allows the angle of the camera to be adjusted for optimum field of view.

This unit comes equipped with a high-performance Oculux® 1080p wide-angle AHD CCTV camera.

Oculux® Camera

The Oculux® camera is supplied with a high performance nylon polyamide (Eplamid) shell that offers exceptional strength and resilience in all conditions.
The Oculux® CCTV camera is designed specifically for the challenges of commercial, heavy goods vehicle and Emergency Service vehicle use.

Tested to the highest vibration, impact, resistance, corrosion and submersion criteria
Injection moulded, anti-shock and life-time guaranteed casings
Very high quality low light vehicle CCTV image reproduction technology
Advanced water repellent, anti-reflection and ultra tough anti-abrasion coatings
Over 2.1 million pixels and 1080P HD at 19:8 aspect ratio – more than double standard vehicle CCTV density
Conforms to the highest ingress protection (IP) ratings of IP68 and IP69K
Every camera has to pass a thorough operational readiness test
Designed and manufactured in the UK

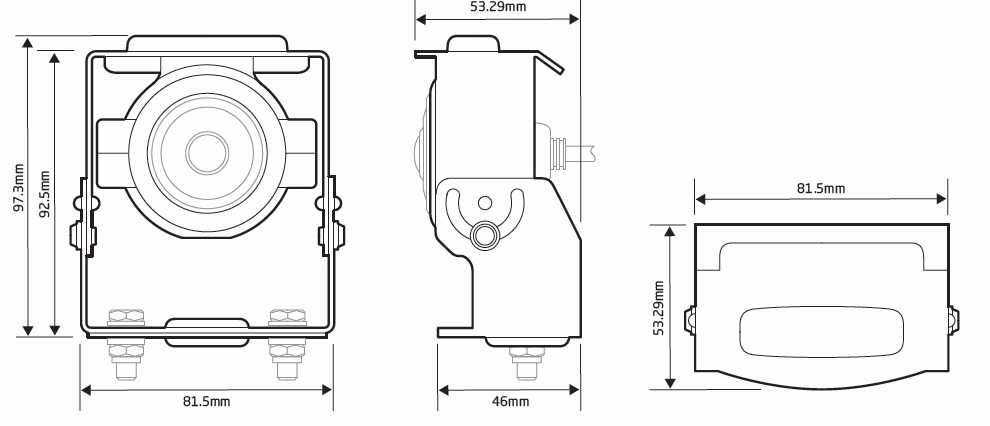

Length: 97.3mm
Width: 81.5mm
Height: 5.29mm
Diameter: 48mm
Operating Temperature: -40°C to +70°C
Storage / Transport Temperature: -40ºC to +90ºC
Approvals: ECE-R10-05: E11*10r05 / 01*10998*04
FCC: G6413TC1

Camera Specification
Oculux® Camera	Model: 301258
Imaging Technology	UltraLux+ - Advanced low light CPU technology
Lens Technology	HyperLens - anti-abrasion and anti-reflective technology
Horizontal Field of View	Wide (159º)
Resolution	HD2: 1920 x 1080
Transmission	AHD
Format	PAL
Enclosure	Shell: High performance nylon polyamide (Eplamid) Illumination Cover: Thin film optical coated automotive grade polycarbonate
Connector	4-pin Aero style
Cable	PVC 0.5cm shielded
Ingress Protection	IP68 / IP69K
Current Consumption	HD2 PAL @ 12Vdc: 80mA to 140mA
Warranty	2 years standard, 5 years standard corrosion and mount failure
