6-Channel Mobile Video Recorder - 2xIPC + 4xAHD

6-Channel Mobile Video Recorder – 2xIPC + 4xAHD

Part number: (+1 more)

Multifunctional in-vehicle DVR with 6-channel full HD recording, 4G/Wi-Fi/GNSS connectivity, and AI-powered driver safety features.

More product information

About the product

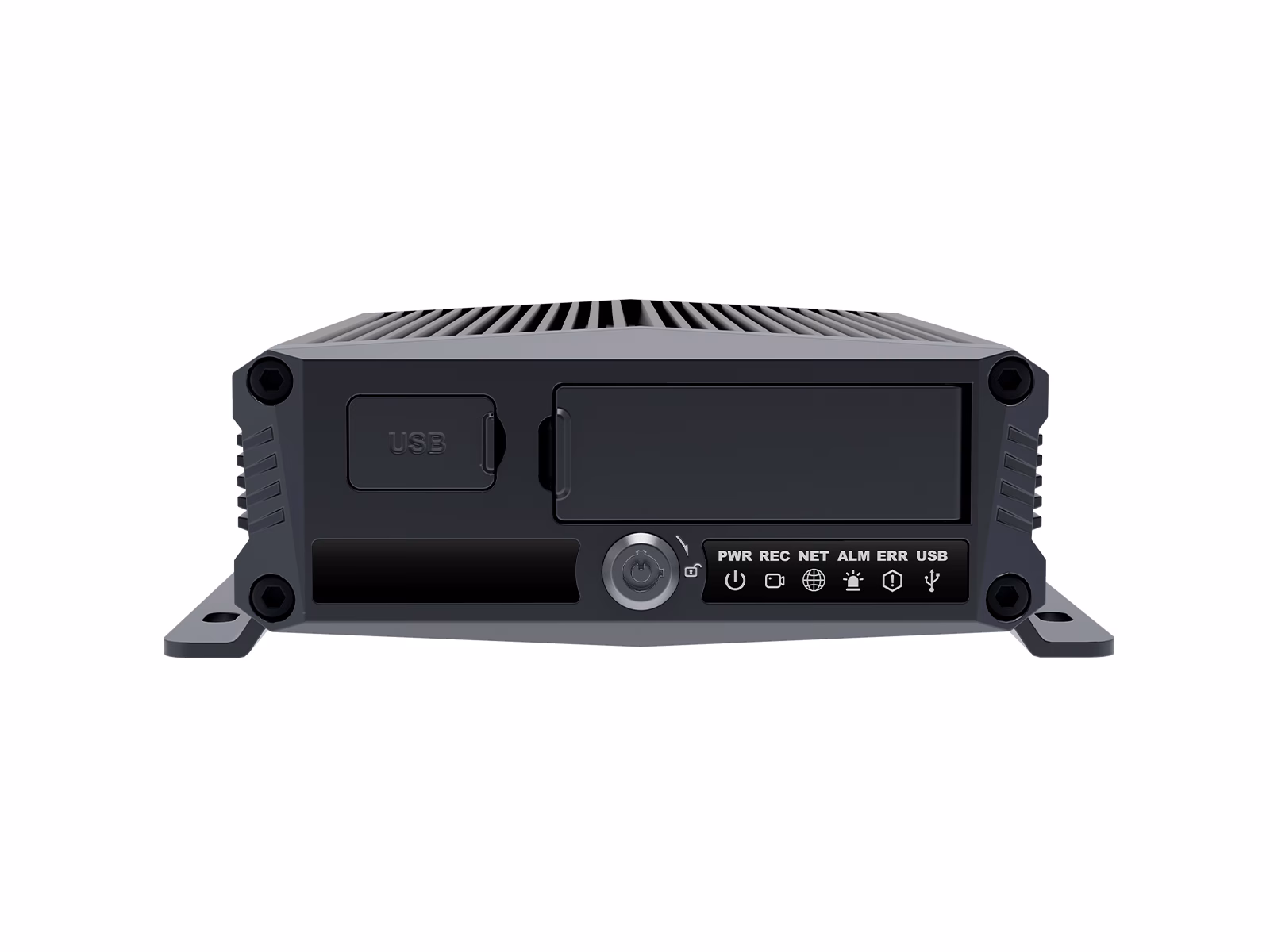

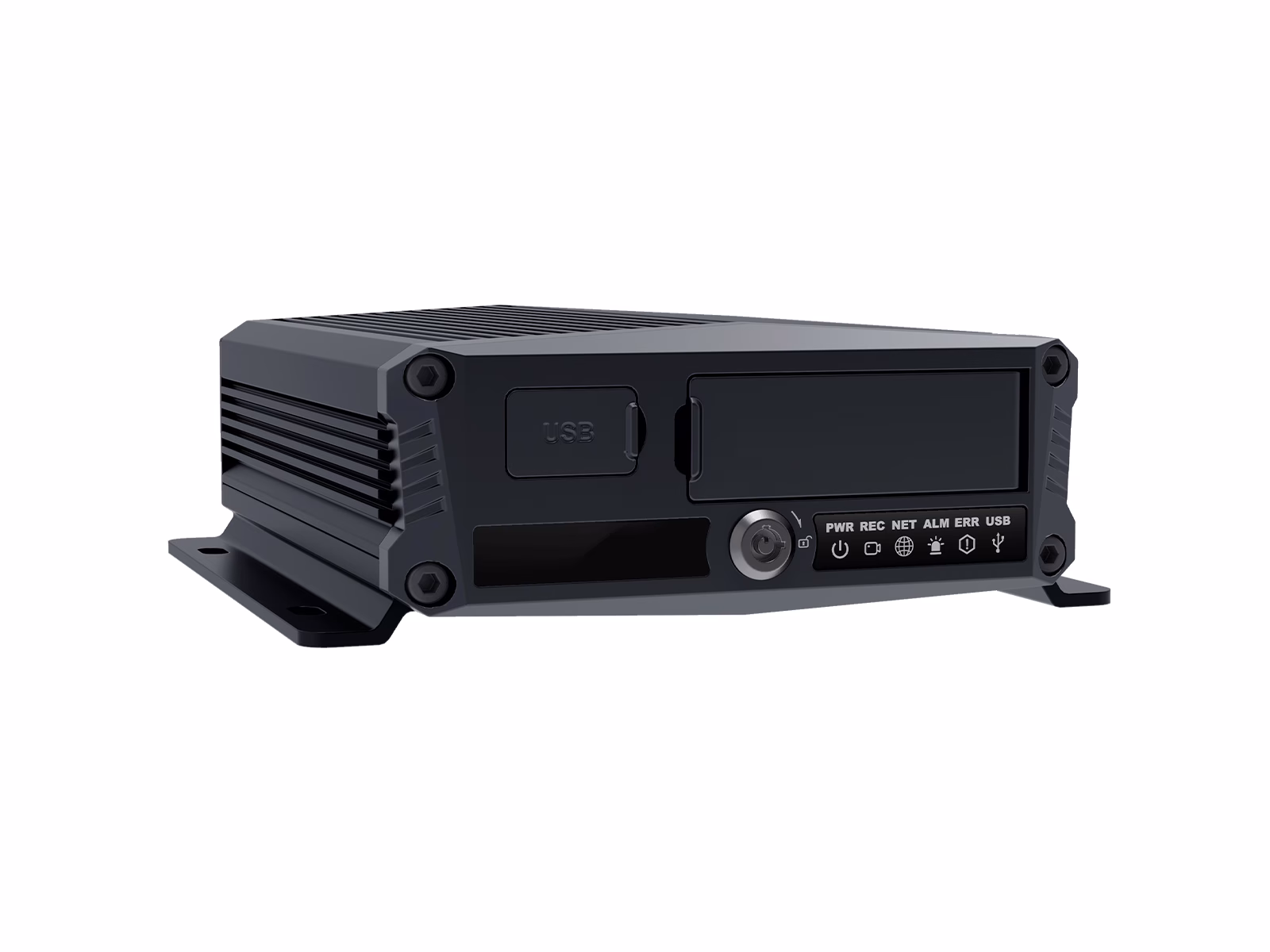

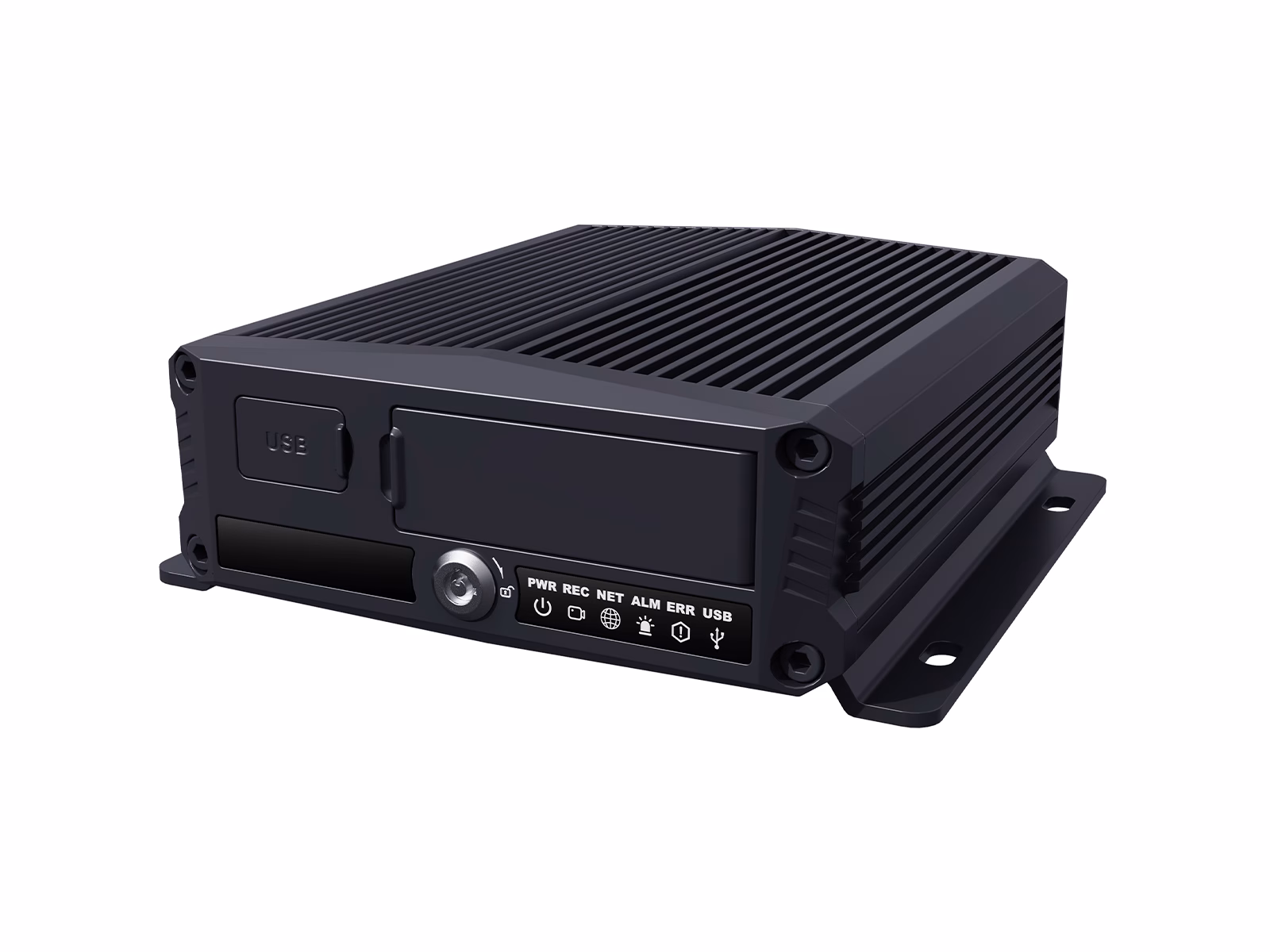

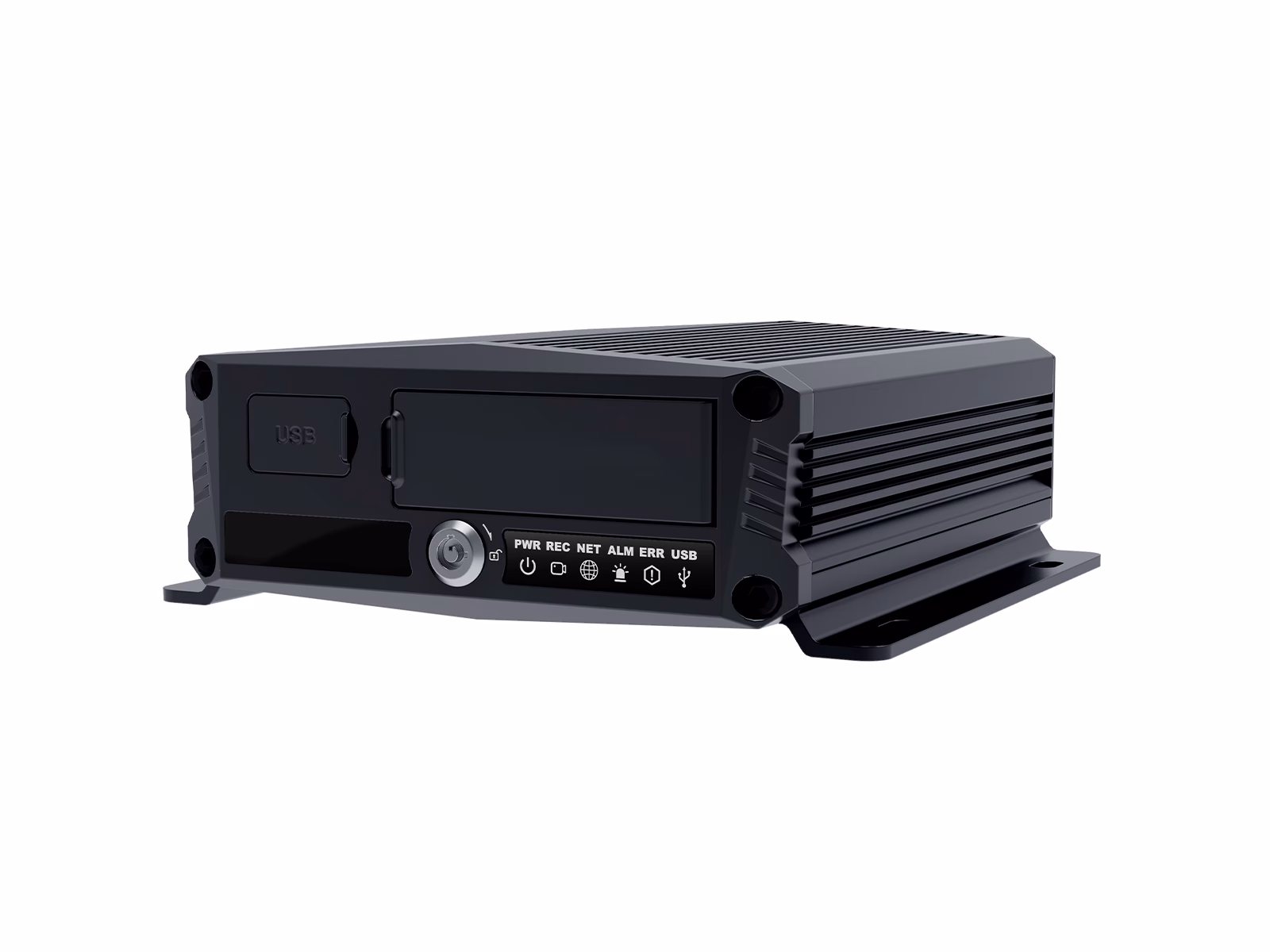

Our M2 6-Channel Mobile Video Recorder is a multifunctional in-vehicle intelligent terminal composed of a storage module, encoding module, communication and power module, with the integration of in-vehicle video monitoring, platform remote video monitoring, and driver behaviour analysis.

Video Encoding Capabilities

The M2 DVR has powerful video encoding capabilities, with maximum support for 4 Channels AHD and 2 Channels IP Camera (IPC).

Simultaneous support for all 6 Channels at 1080P@30fps
Full HD real-time full frame encoding and recording
Ensures video quality without frame rate loss

Wireless Communication & Positioning

The product has built-in rich wireless communication capabilities, supporting:

4G high-speed network
Wi-Fi wireless networking
GPS/BDS/GALILEO/GLONASS multi-band quad-constellation global GNSS positioning system

AI Processing & Driver Safety

Equipped with powerful NPU processing capabilities based on AI algorithms, the M2 DVR supports 2 Channels with built-in AI, covering:

Advanced Driver Assistance System (ADAS)
Driver Monitoring System (DMS)
Blind Spot Detection (BSD)

These features enhance driver safety and help reduce pedestrian-vehicle traffic accidents.

Durability & Standards Compliance

The M2 6-Channel Mobile Video Recorder has strong electronic interference reduction, meeting ISO16750 and ISO7637 vehicle test standards, ensuring reliable use across various vehicle types.

Benefits

Drawings

Technical Data

Power Consumption: Host bare metal power consumption <10W, typical operating power consumption <40W
Length: 154mm
Width: 151mm
Height: 52mm
Weight: 1.7kg
Operating Temperature: -40°C to +70°C
Storage / Transport Temperature: -40ºC - +85ºC


Basic Parameters	RAM	1GB
	ROM	8GB
	Operating System	Linux
	3G/4G	TDD-LTE/FDD-LTE/EVDO/TD-SCDMA/WCDMA Extended support for 2 hierarchical antennas (optional)
	Wi-Fi	WIFI5 support, 802.11b/g/n/ac compliant (optional)
	Localisation	Support GPS/BDS/GALILEO/GLONASS
	Storage	Support 2 x Micro SD card, up to 2 x 512GB Support 1 x M.2 SATA SSD, up to 1 x 2TB
	Transducers	Supports 6-axis accelerometers

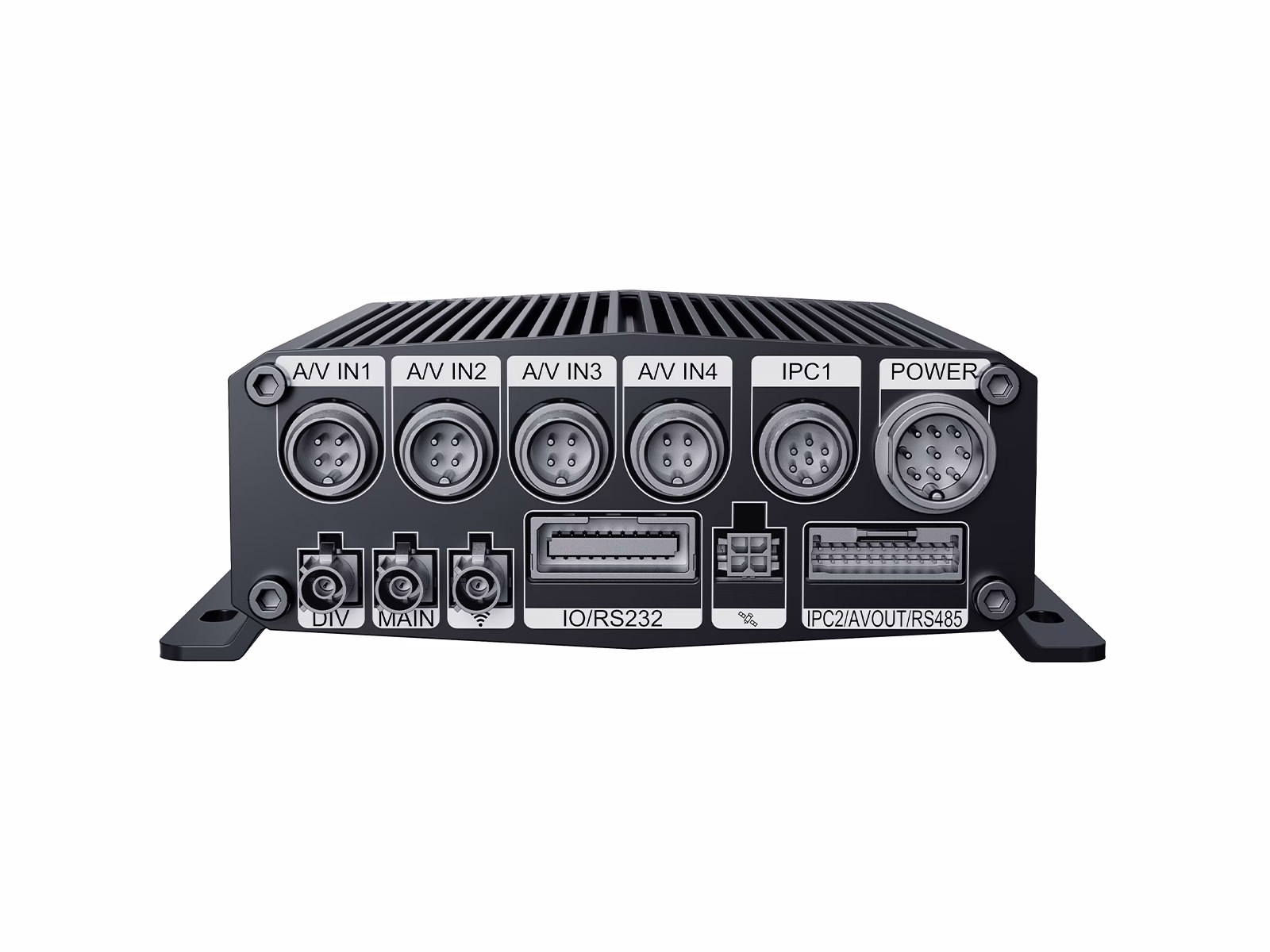

Interface Function	Video Input	4 Channels AHD + 2 Channels IPC (maximum resolution support 1080P)
	Codecs	Full HD real-time full frame encoding with the following encoding capabilities: PAL: 4 x 1080P@25fps (AHD) + 2 x 1080P@30fps (IPC) NTSC: 4 x 1080P@30fps (AHD) + 2 x 1080P@30fps (IPC)
	Video Output	1 Channel AHD or CVBS
	Audio Input	4 Channels AHD + 2 Channels IPC
	Audio Output	1 Channel with video output
	USB	Front Type-A connector USB2.0
	Micro SD	2 x Micro SD ports
	SSD	1 x M.2 SARA, SSD, up to 2TB
	SIM Card	1*SIM physical card slot, optional support for digital SIM card eSIM
	I/O	8 x Inputs, 2 x Outputs (optional)
	Serial Port	2 x RS232, 1 x RS485 (can be expanded)
	IR	Support
	AI	Supports built-in 2 Channel (ADAS, DMS, BSD)
	CAN	2 x CAN_FD
	Speed	GPS speed or speed pulse input
	Driver Inf. Interface	W217 module. Supported protocol: 802.11a/b/g/n/ac Supported frequency band: 2.4/5.0 GHz
Power Supply	Power Input	DC 9-36V
