External LED Lights

Mini Stealth 3-Way Surface Mount LED Module

Part number: (+3 more)

The Mini Stealth 3-Way Surface Mount LED Module is an extremely powerful unit with 3 high intensity LEDs fset within a sealed, robust, weather resistant aluminium housing.

More product information

About the product

The Mini Stealth 3-Way Surface Mount LED Module fixes directly to the surface of the vehicle bodywork or can be inset with the use of a rubber mounting boot (ACC-253 sold separately). There is also a range of optional mounting brackets available to order for alternative applications.

These units operate at 12v and 24v, are supplied complete with gasket, fixings and installation instructions.

6-LED Modules also available as Horizontal Mount versions with Clear or Smoked Lenses as well as a Vertical Mount Module.

Benefits

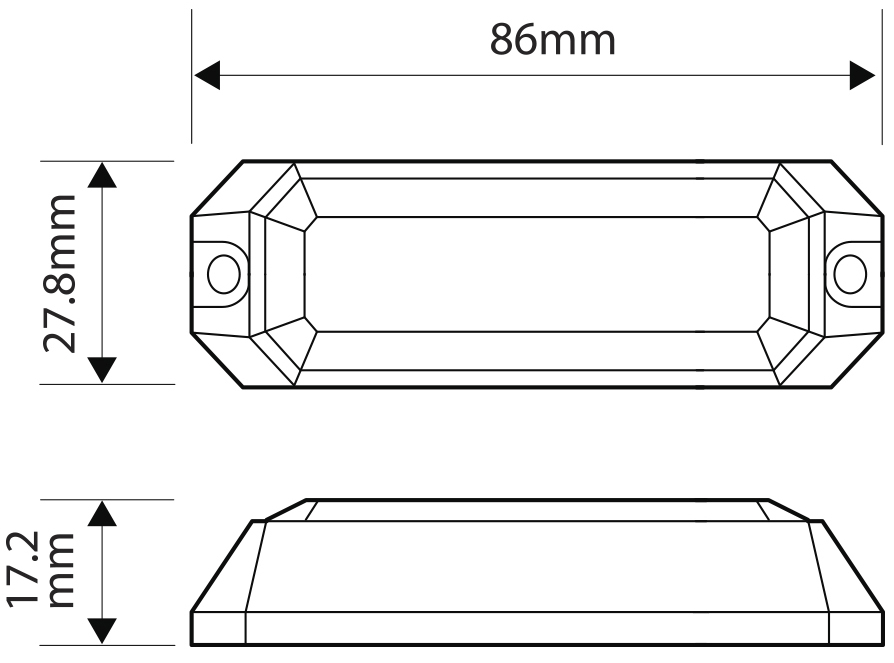

Drawings

Downloads

Technical Data

Nominal Voltage: 12/24 VDC
LED Colour: Amber, Blue, Red, White
Lens Colour: Clear
Number of LEDs / LED Modules: 3
Flash Patterns: Single flash, Double flash, Steady on 12 Built-In
Synchronisation: Yes
Housing Material: Aluminium
Housing Colour: Black
Weight: 74g
Operating Temperature: -30ºC to +65ºC
Storage / Transport Temperature: -40ºC to +75ºC
Protection Class: IPX7
Approvals: ECE R65 class 1, EMC ECE R10

Flash Patterns
1	Random	7	Quad
2	Steady	8	Quint
3	Single	9	Ultra
4	Mega	10	Single-Quad
5	Double	11	Single H/L
6	Triple	12	Single-Triple-Quint
