The Mini Stealth 12-Way Double Stacked Single-Colour LED Module is an extremely powerful unit with 12 high intensity LEDs set within a sealed, robust, weather resistant aluminium housing.
Fix the Mini Stealth 12-Way Double Stacked Single-Colour LED Module directly to the surface of the vehicle bodywork or inset it with the use of a rubber mounting boot (ACC-310 sold separately). There is also a range of optional mounting brackets available to order for alternative applications.
Also available as dual colour.
These units operate at 12v and 24v, are supplied complete with gasket, fixings and installation instructions.

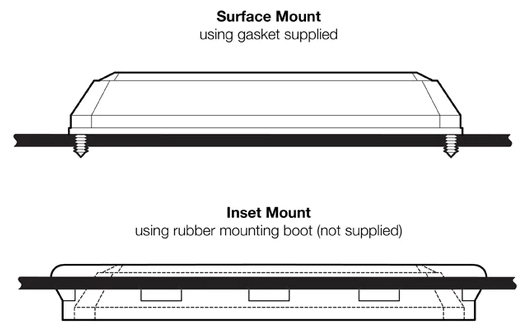

Mounting

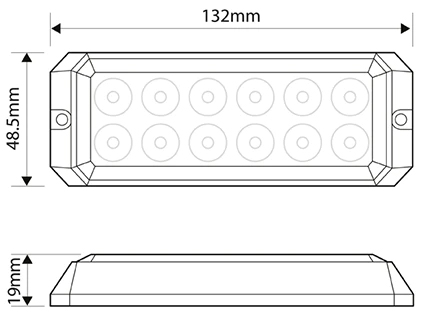

Dimensions
Flash Patterns
| Flash Patterns | |||||
|---|---|---|---|---|---|
| 1 | Double (R65) | 10 | Mega (Split) | 19 | Ultra (All) |
| 2 | Single (2Hz) | 11 | Ultra (Split) | 20 | Single-Quad |
| 3 | Triple (2Hz) | 12 | Single-Quad (Split) | 21 | Single H/L (All) |
| 4 | Quad (2Hz) | 13 | Single H/L (Split) | 22 | Steady 2 (California) |
| 5 | Random | 14 | Single (All) | 23 | Steady 4 (All) |
| 6 | Single (Split) | 15 | Double (All) | 24 | Rotate Slow |
| 7 | Double (Split) | 16 | Quad (All) | 25 | Rotate Fast |
| 8 | Quad (Split) | 17 | Quint (All) | ||
| 9 | Quint (Split) | 18 | Mega (All) | ||

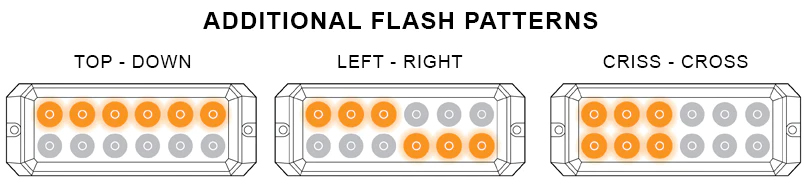

| Additional Flash Patterns | |||||
| 1 | Top-Down (Phase 1) | 3 | Left-Right (Phase 1) | 5 | Criss-Cross (Phase 1) |
| 2 | Top-Down (Phase 2) | 4 | Left-Right (Phase 2) | 6 | Criss-Cross (Phase 2) |
Rubber Mounting Boots for setting 3-way, 6-way and 12-way Surface Mount Mini Stealth Modules into the vehicle body work.
Mounting Brackets for 3-Way, 6-Way and 12-Way Surface Mount Mini Stealth LED Modules.
The Mini Stealth 3-Way Surface Mount LED Module is an extremely powerful unit with 3 high intensity LEDs fset within a sealed, robust, weather resistant aluminium housing.
The Mini Stealth 3-Way Flush Fit LED Module is an extremely powerful compact LED module containing 3 in-line, high intensity LEDs within a robust, weather resistant housing.
The Mini Stealth 6-Way Horizontal Surface Mount LED Module is an extremely powerful unit with 6 high intensity LEDs for single colour versions and 6+6 LEDs for dual colour versions set within a sealed, robust, weather resistant aluminium housing.
The Mini Stealth 6-Way Surface Mount Smoked Lens LED Module is an extremely powerful unit with 6 high intensity Blue LEDs set within a sealed, robust, weather resistant aluminium housing.
The Mini Stealth 6-Way Vertical Surface Mount LED Module is an extremely powerful unit with 6 high intensity Blue LEDs set within a sealed, robust, weather resistant aluminium housing.
The Mini Stealth 6-Way Flush Fit LED Module is an extremely powerful compact LED module containing 6 in-line, high intensity LEDs for single colour versions and 6+6 LEDs for dual colour versions within a robust, weather resistant housing.
Ideal for covert applications, the Mini Stealth 6-Way Flush Fit Smoked Lens LED Module is an extremely powerful unit with 6 high intensity Blue LEDs set behind a smoked lens and within a sealed, robust, weather resistant aluminium housing.
The Mini Stealth 12-Way Double Stacked Dual-Colour LED Module is an extremely powerful unit with 12 high intensity LEDs set within a sealed, robust, weather resistant aluminium housing.
