- Different types of assembly
– Fixed-Mount
– Tube-Mount - Various adjustable flash modes
- Very good warning effect
- Impact-resistant polycarbonate-coloured domes
- Suitable for 12/24 V.
- Day approval according to ECE R65 class 2
More product information
Benefits

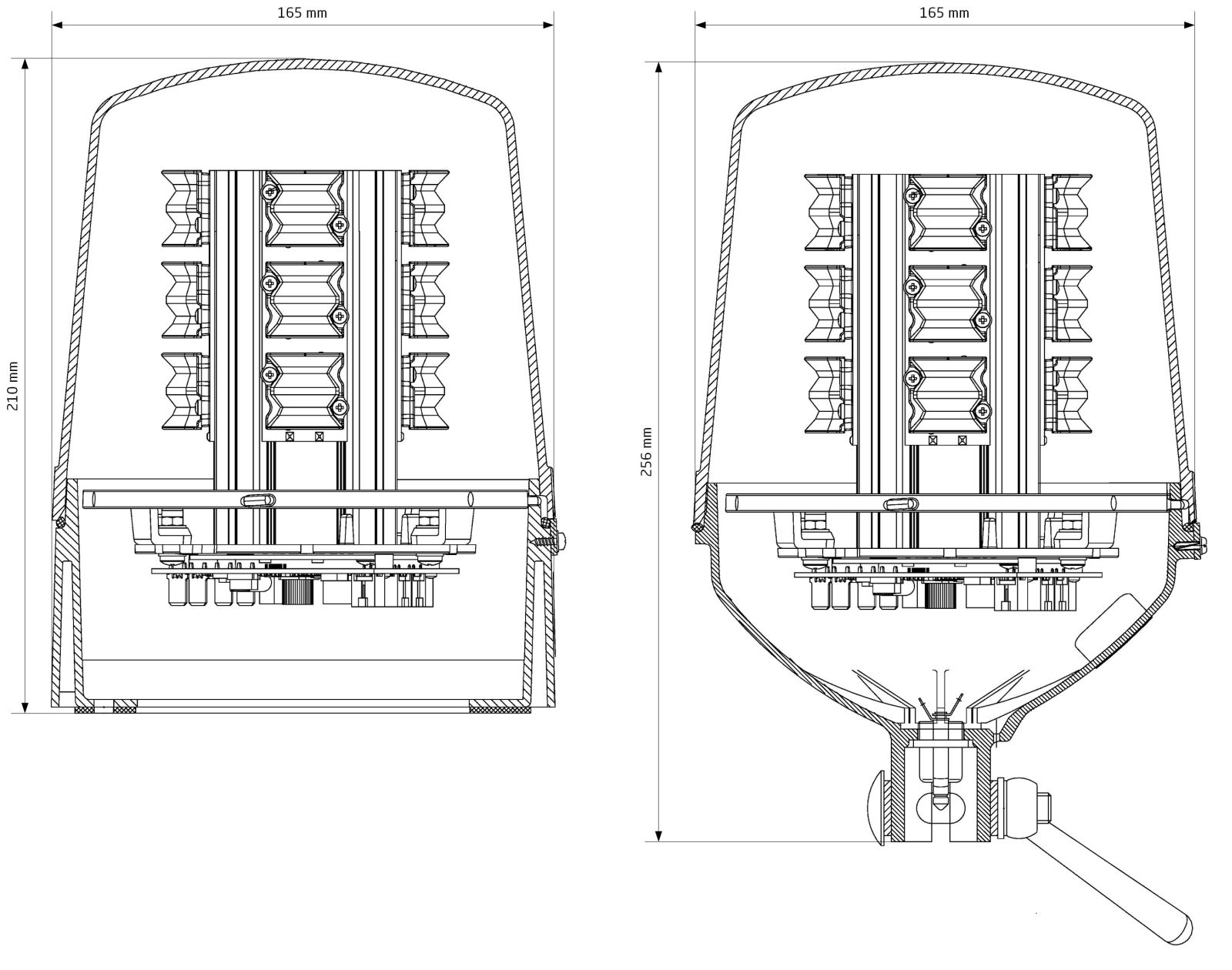

Drawings
Downloads
Technical Data
- Operating Voltage
- 10 - 30 VDC
- Nominal Voltage
- 12/24 VDC
- Current consumption
- 12V: 1.2A; 2.8A peak
24V: 0.6A; 1.4A peak - Dome Colour
- Blue
- LED Colour
- Blue
- Flash Frequency
- 2.1Hz
- Flash Patterns
- Double flash
- Interface
- Hard wired
- Mounting
- Fix mounting, Pole mounting
- Housing Material
- Polycarbonate
- Height
- 210mm; fixed mounting
256mm; pole mounting - Diameter
- 165mm
- Weight
- 1.3kg
- Operating Temperature
- -40°C to +70°C
- Storage / Transport Temperature
- -40°C to +80°C
- Protection Class
- IP 56
- Approvals
-
E1-TB2-003347; light
E1-10R-046927; EMC
Accessories(5)
Bracket for pole-mount-beacons
Part number: F16065
bracket with threat for pole-mount-beacons
Part number: 007528111652
Flexible bracket for pole-mount-beacons
Part number: F17126
rubber gasket for beacon B1, 2.1°
Part number: 007533300652Related products(2)
